The global push for renewable energy and circular economy has made efficient biomass recycling a strategic priority, particularly for palm oil and wood processing industries. Processed palm fibers and wood are widely used for power generation, pellet production, MDF manufacturing, and biochar, creating strong demand for reliable shredding technology. However, fibrous biomass like palm residues and mesquite poses tough challenges: long fibers cause clogging, abrasive materials accelerate wear, and conventional equipment often suffers from high energy consumption, frequent downtime, and inconsistent output—especially when targeting a 30–50 mm fine fraction.
GEP ECOTECH's Breakthrough Solution: A Fully Integrated Dual‑Stage System
To overcome these obstacles, GEP ECOTECH has engineered a heavy‑duty, continuous‑operation fine shredding line specifically for 1 ton/hour palm fiber and wood processing. The complete system integrates the feeding belt conveyor, primary double‑shaft shredder, magnetic separator, GXB series hammer mill, and discharge belt conveyor—all synergistically designed for maximum efficiency and reliability.
Stage 1: Primary Reduction—Double‑Shaft Shredder

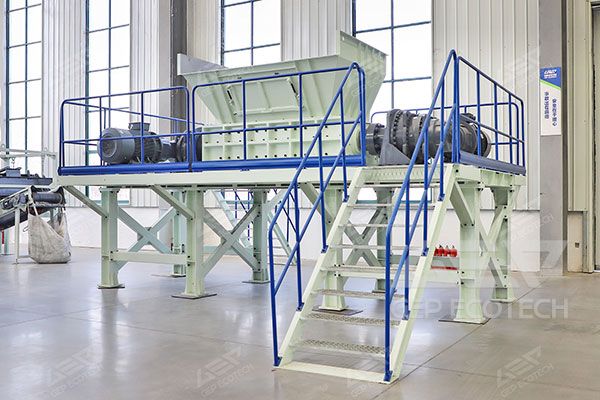

The process begins with the feeding belt conveyor, which delivers bulky palm trunks, fronds, or mesquite logs steadily into the first‑stage shredder. The double‑shaft shredder is engineered with a low‑speed, high‑torque principle ideally suited for fibrous, tenacious materials. Its intermeshing cutters, forged from high‑alloy wear‑resistant steel and arranged in a staggered pattern, effectively shear, tear, and pull apart long cellulose fibers without wrapping or clogging—a common failure in conventional equipment. The shredder features a large‑capacity hopper, an automatic reverse function to clear jams, and a hydraulic pusher to maintain positive feeding. With a rugged reducer and overload protection, it accepts feeding sizes up to 1,000 mm and reduces them to a coarse 50–200 mm fraction at 10 t/h. Its split chamber design allows rapid knife access, minimising downtime, while the energy‑efficient hydraulic drive ensures consistent torque under variable loads for 24/7 operation.
Between the two stages, an integrated magnetic separator removes tramp metal (nails, screws, or foreign objects) that could damage downstream components, safeguarding both equipment and product purity.
Stage 2: Final Precision Reduction—The GXB Hammer Mill
The pre‑shredded material then enters the GXB Series Hammer Mill (Biomass Fine Shredder), purpose‑built for fine reduction. This unit features an extra‑large‑diameter rotor that generates high linear velocity and substantial rotational inertia, delivering powerful impact and cutting forces. The key to its superior performance is the large, easily adjustable screen area: particles are repeatedly struck by hardened hammers and sheared against breaker plates; once they reach the target size, they pass through the screens, while oversize pieces remain in the cutting chamber until adequately reduced. For this 10 t/h application, the GXB hammer mill reliably produces a final output of 30–50 mm, with screen selection allowing precise particle size tuning. Its robust construction—thick housing, wear‑resistant liners, and a dynamically balanced rotor—ensures long service life even when processing abrasive mesquite or silica‑bearing palm fibers. Built‑in dust suppression and sound‑dampening features address environmental and safety concerns.

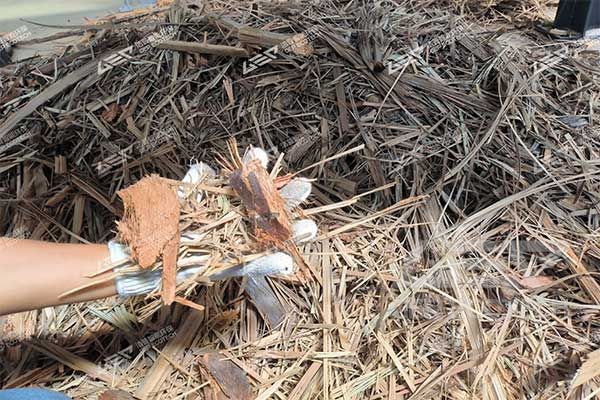

Finally, the discharge belt conveyor transports the finished 30–50 mm homogeneous biomass particles to storage or downstream processes (e.g., pelletizing or briquetting), completing a seamless, automated line with minimal manual intervention.
Wide Applicability Across Biomass Types
While perfectly suited for palm fibers and mesquite wood, this dual‑stage shredding solution is highly versatile. It effectively processes agricultural and forestry waste, straw, Napier grass, sugarcane leaves, flax straw, rootstocks, and fruit shells. Whether for biomass power stations, pellet production lines, or briquetting plants, GEP ECOTECH's system delivers consistent, high‑quality output.
Comprehensive Biomass Solutions from GEP ECOTECH

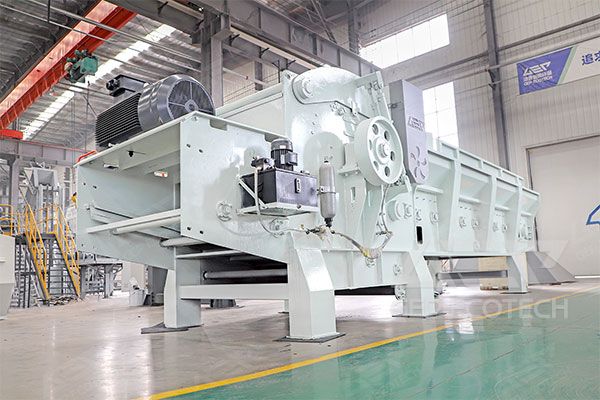

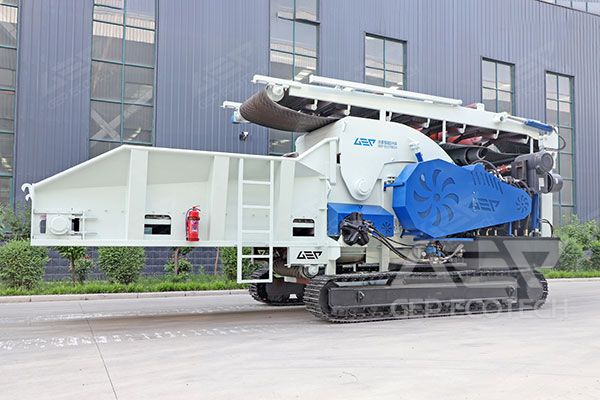

Beyond the double‑shaft shredder and hammer mill combination, GEP ECOTECH offers a full spectrum of biomass processing equipment. The GZP Series Drum Chipper handles up to 20 tons per hour, reducing material to 50 mm for fuel applications with lower costs and reliable performance. For operations requiring mobility, mobile shredder plants provide unparalleled flexibility, moving effortlessly between job sites—from forestry operations to urban clearing projects.
Partner with GEP ECOTECH for Customized Solutions
As a pioneer in solid waste processing and recycling technology, GEP ECOTECH specializes in designing and manufacturing high‑performance shredding, crushing, and sorting systems. Every project is unique, and our team of industry experts is ready to provide tailored solutions that meet your specific material characteristics, capacity requirements, and budget constraints. Contact GEP ECOTECH today to discuss your biomass shredding needs and discover how our durable, efficient technology can transform your waste into valuable resources.
