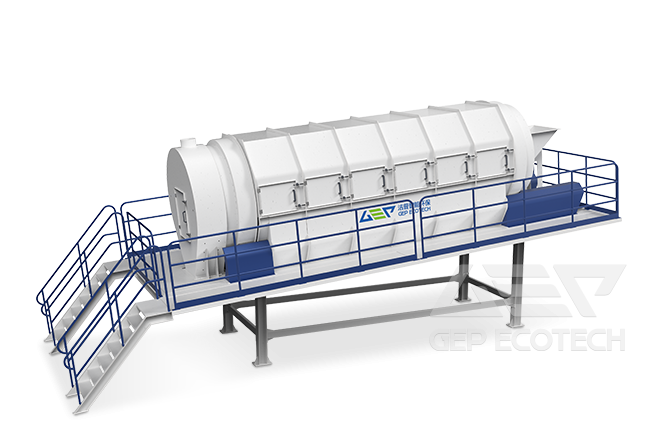

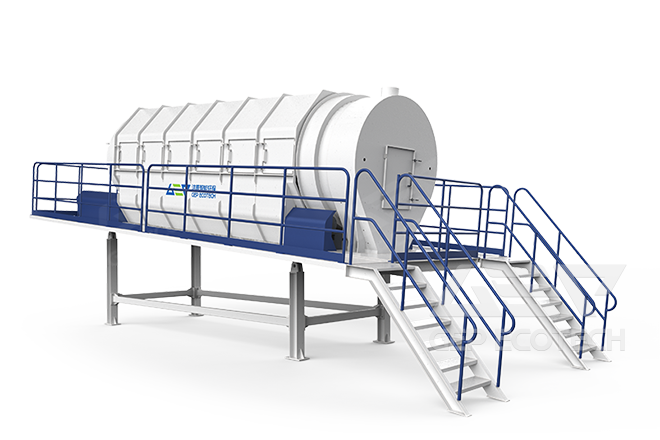

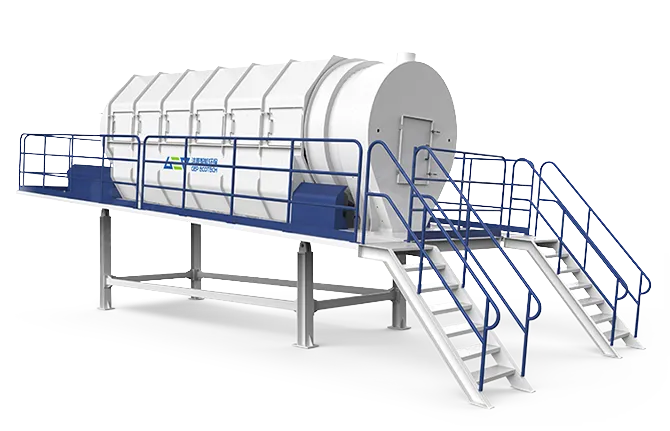

Rotary Drum Screen

GTS series rotary drum screen is a kind of screening equipment for screening according to the particle size of the material, mainly composed of motor, reducer, drum device, frame, sealing cover, inlet and outlet, etc. The overall structure is sturdy, high permeability, the screen holes are not easily blocked and the screening effect is good. The system as a whole adopts an effective fully sealed structure and is equipped with an interface to the dust and deodorization system, which does not raise dust and does not pollute the environment.

Overview

The rotary drum screen is mostly used for urban domestic waste, landfill waste, industrial solid waste, construction waste, but also for mining, power plants, building materials, metallurgy and other industries.

The electric motor is connected to the drum unit by a coupling through a reducer, driving the drum device to rotate around its axis. When the material enters the drum device, the material on the screen surface is turned and rolled due to the inclination and rotation of the drum device, so that the smaller material (the product under the screen) is discharged through the screen mesh of the outer circle of the drum and the oversize material (the product on the screen) is discharged through the end of the drum.

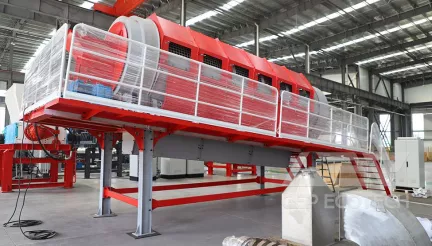

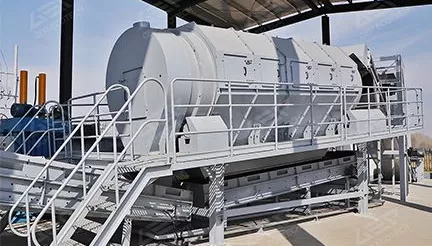

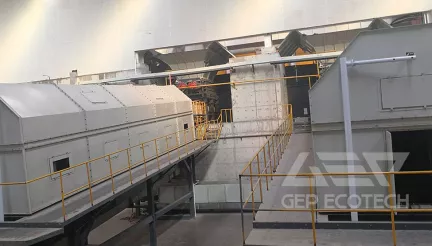

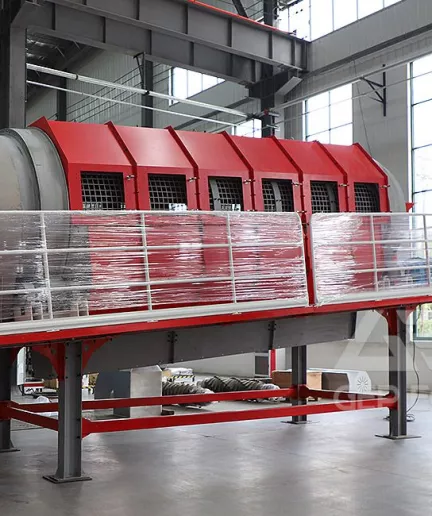

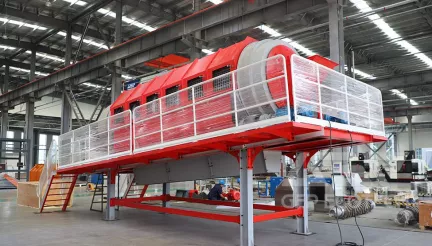

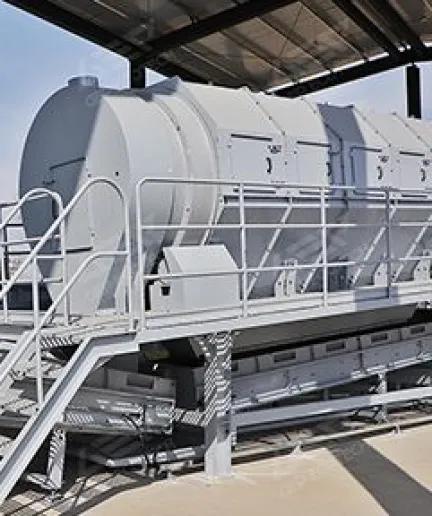

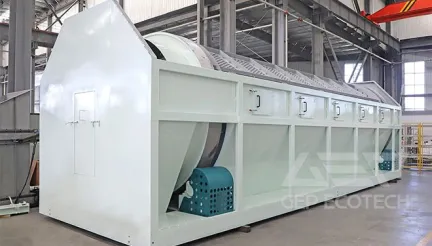

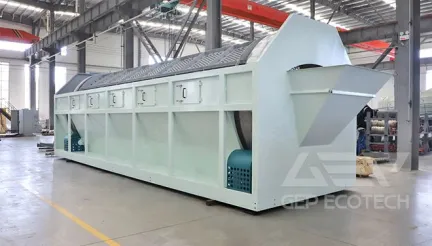

Gallery

Features

 

Technical Specifications

Model	Specification	Diameter	Rotating speed (rpm)	Power (kW)
GTS1230	Φ1.2×3	Φ1200	12-17	4-5.5
GTS1530	Φ1.5×3	Φ1500	12-17	5.5-11
GTS1550	Φ1.5×5	Φ1500	12-17	11-15
GTS1850	Φ1.8×5	Φ1800	10-15	11-18.5
GTS2060	Φ2.0×6	Φ2000	10-15	18.5-22
GTS2580	Φ2.5×8	Φ2500	10-15	22-38
