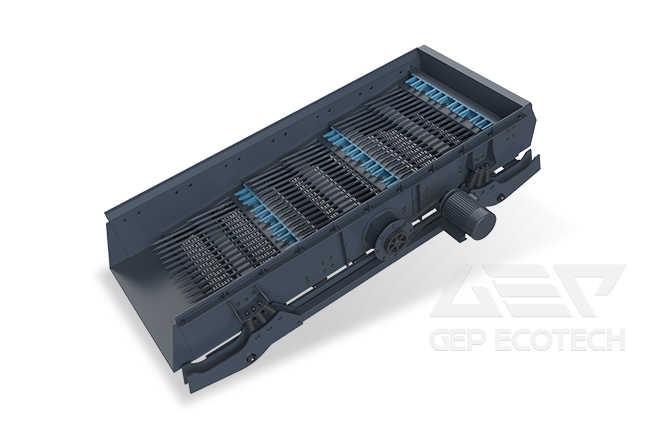

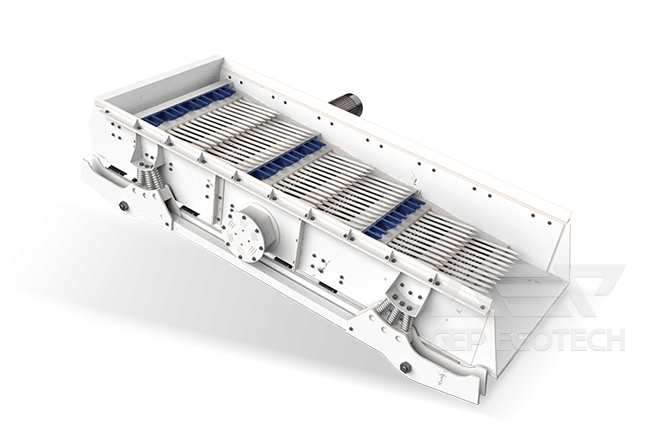

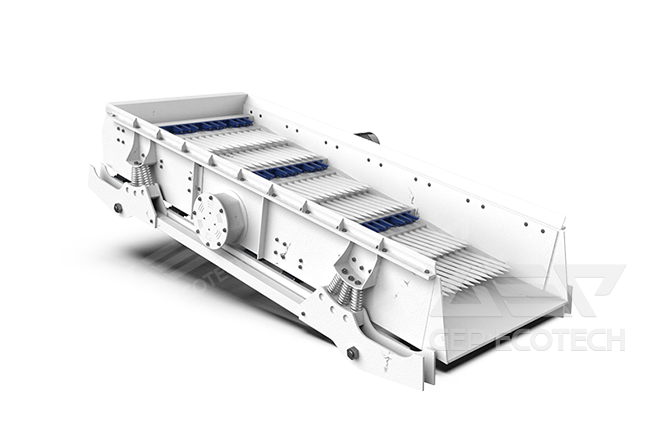

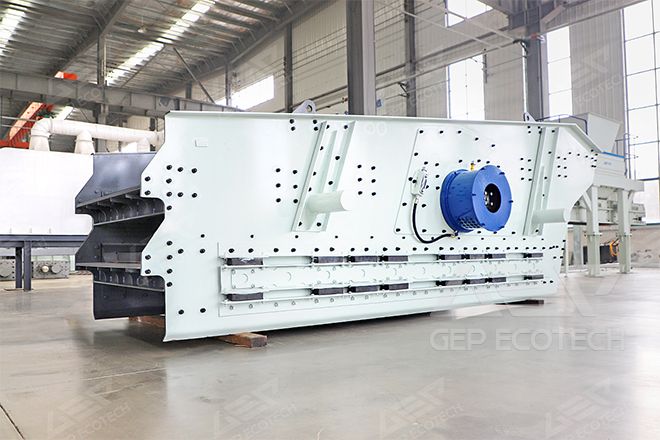

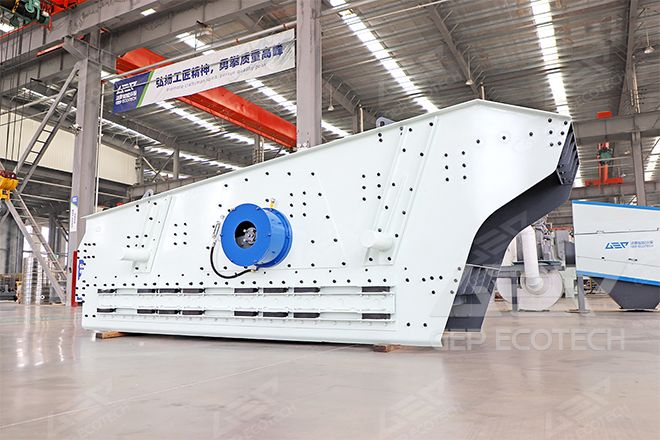

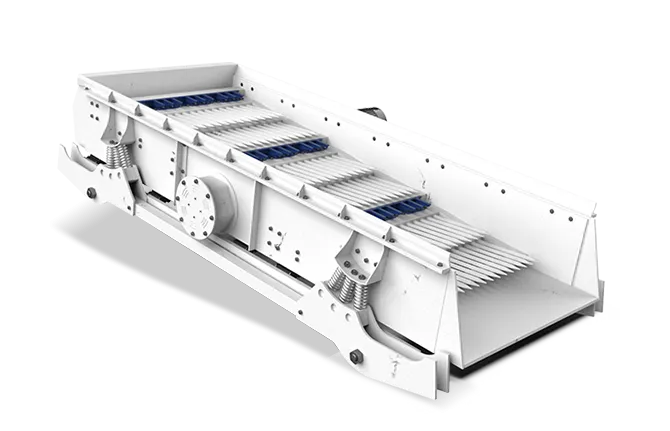

Flip-Flow Screen

The flip flow screen is a combination of circular vibrating screen screening technology and toothed screen technology, consisting of vibration box, screen box, intermediate shaft, driving device and spring, etc. It has the characteristics of high elasticity, smooth vibration and compact structure. The polyurethane elastic screen makes continuous relaxation movement through the resonance principle, so that the acceleration of material throwing can reach 30-50 times of the acceleration of gravity, solving the problems of low screening efficiency, screen plate blocking holes, noise, etc.

Overview

The flip flow screen is an effective solution to the complex and diverse screening requirements of construction waste aggregates, and is mostly used for wet material screening applications.

The working principle of the flip flow screen is that a single drive provides a double vibration: the circular vibration generated by the rotation of the eccentric block is the basic vibration and the oval vibration generated by the floating screen frame is the additional vibration. The polyurethane elastic screen surface is mounted at both ends on the floating beam and the fixed beam of the floating screen frame. The polyurethane elastic screen surface expands and contracts continuously during the screening process to obtain a high vibration intensity, thus effectively preventing blockage of the screen holes.
