Municipal Solid Waste Disposal System

MSW disposal involves volume reduction and sorting. The waste is reduced for further processing using different levels of shredders, then sorting equipment is used to separate the valuable materials from the waste. The higher calorific value materials can be used to make fuel, the organic materials can be made into compost or used for digester fermentation, and the unwanted waste is reduced and buried to reduce landfill space.

With the spread of global urbanization and the acceleration of the pace of life, urban waste is increasing and has become a global problem that threatens the living environment and health and safety of human beings, and the treatment of urban waste is urgent.

MSW contains a large amount of recyclable and reusable materials, such as high calorific value combustible materials that can be prepared into alternative fuels (RDF, SRF) to reduce the use of coal, organic materials that can be made into compost or used for digester fermentation, and high value recyclables such as plastics, glass, metals and waste paper that can be directly reused or made into raw materials.

The main common disposal methods for municipal waste are landfill, composting and incineration, but all must be shredded and refined before disposal. GEP ECOTECH offers a full range of MSW disposal systems to help improve treatment efficiency and recycling rates through pre-shredding, magnetic separation, screening and fine shredding processes to reduce the volume of MSW and sort them.

GEP ECOTECH can develop the best disposal solution according to the project requirements, effectively reducing project operating costs, using highly automated, stable, efficient, safe and reliable equipment with a low failure rate, completely reducing the volume and weight of domestic waste, saving land area and extending the life of the landfill site.


  • Humus Humus
  • Cement Kiln Incineration Cement Kiln Incineration
  • Fuel Rod Fuel Rod
  • Textile Textile
  • Plastic Products Plastic Products
Municipal Solid Waste Disposal System

Raw Domestic Waste Disposal Solution

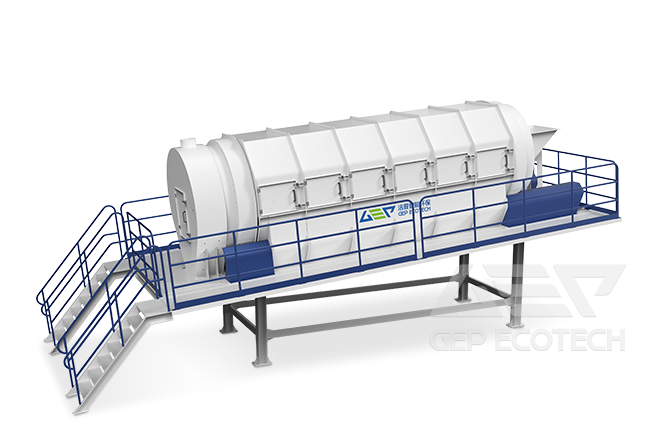

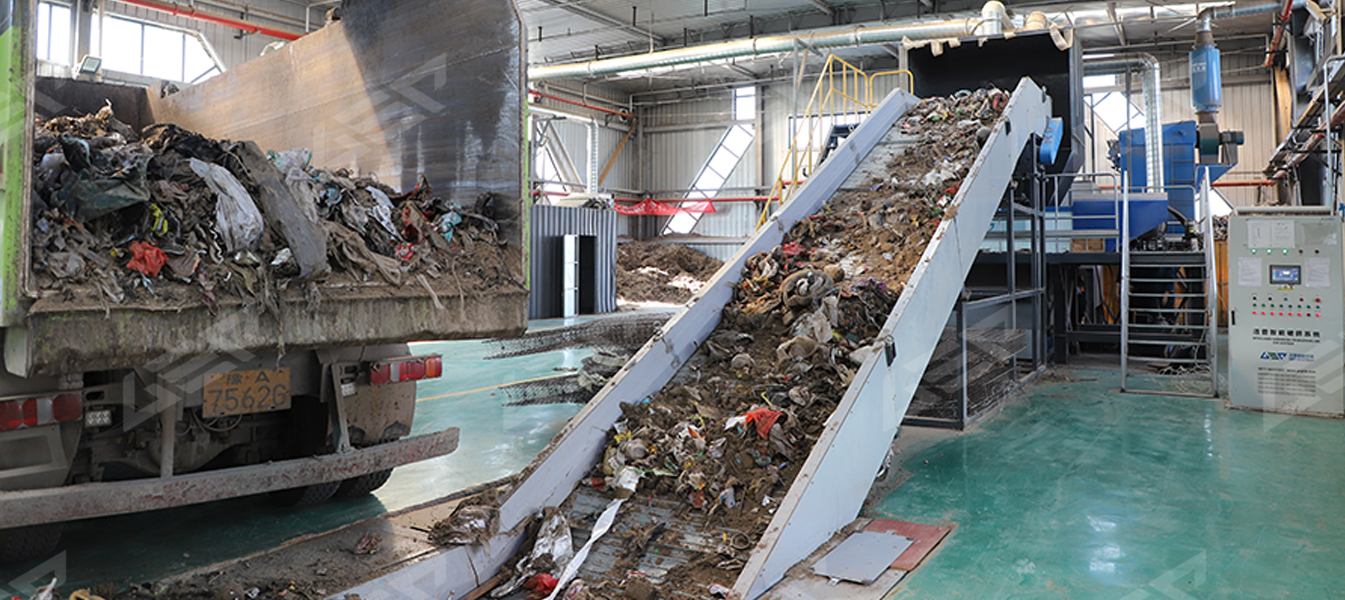

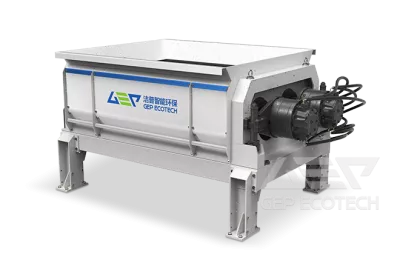

The household waste is transported to the pre-shredder for pre-shredding, the shredded material enters the trommel screen for screening, where the material >40mm is separated by the magnetic separator and the wind separator to obtain usable metal, heavy material and light material, where the light material is transported to the fine shredder for fine shredding, and finally the fuel meets the feed size. The < 40mm screened material from the trommel screen is returned to landfill, together with the heavy material from the wind separator.

Benefits of GEP Ecotech Raw Domestic Waste Disposal Solution

  • The entire system is intelligently controlled, easy to operate, high in processing efficiency, low in energy consumption, and saves manpower and operating costs.
  • The system is closed and equipped with environmental protection equipment, which meets environmental protection standards and has no secondary pollution.
  • Wide range of waste disposal, good classification effect of different substances.

We can design customized disposal solutions and equipment according to your specific situation, contact us about your application.

Food Waste Disposal Solution

Food Waste Disposal Solution

Food waste accounts for about 50% of municipal waste and has a complex composition, including leftovers, vegetables, leaves, peels, meat and bones, etc. GEP ECOTECH has a disposal system with a full range of food waste disposal functions - intelligent feeding + pre-sorting + intelligent shredding+ Fine Sorting + Multi-stage Screw Press, with advanced technology, high sorting and debris removal efficiency and high automation, ultimately achieving effective separation and recovery of organic matter.

Benefits of GEP Ecotech Food Waste Disposal Solution

  • The scheme can be flexibly adjusted according to the situation of food waste in different regions, and the material adaptability is good.
  • All equipment is designed in terms of anti-corrosion, wear resistance, impact resistance, waterproof and dustproof, etc., and the production line can run stably and continuously for a long time.
  • The entire disposal process is fully enclosed design, with good sealing performance, which can effectively prevent the leakage of odor and harmful substances.
  • Equipped with professional sewage treatment system, dust removal and deodorization equipment to meet environmental protection requirements.
  • The intelligent system monitors various operating data of the production line in real time, understands the operating status of the equipment in a timely manner, and realizes intelligent, digital, and refined monitoring and management of the production line.

We can design customized disposal solutions and equipment according to your specific situation, contact us about your application.

Aged Waste Disposal Solution

Aged Waste Disposal Solution

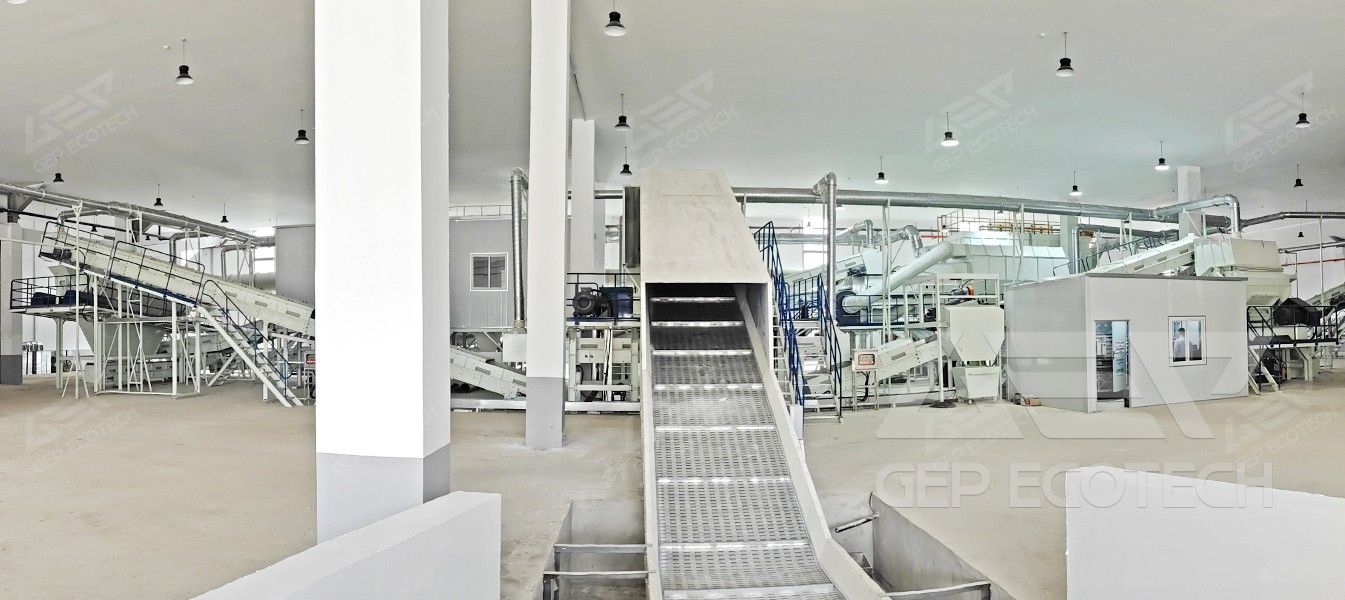

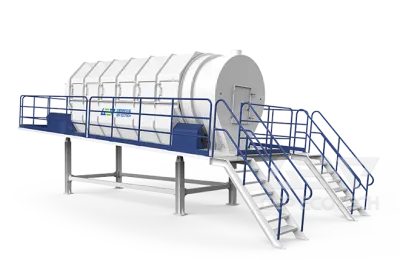

The aged waste is conveyed to the trommel screen for screening, and the screened material >40mm is conveyed to the shredder, wind separator and fine shredder for shredding, sorting and fine shredding in turn. The light combustible material RDF is compressed and transported to the incineration power plant for incineration and power generation. The metal selected by the magnetic separator can be recycled and the heavy inert material selected by the wind separator system, such as construction material, can be used as road base material and raw material for recycled building materials; the material under the screen of<40mm is landfill soil, humus, etc. and is transported back to the landfill for backfill, greening or composting.

Benefits of GEP Ecotech Aged Waste Disposal Solution

  • The system runs automatically, with high processing efficiency, stable operation, and manpower saving.
  • The shredder, sorting system and winnowing system used in the system are all GEP patented products with good processing effect.
  • According to the different material composition and treatment requirements of different projects, we can flexibly design the treatment plan to improve the overall disposal efficiency and effectively reduce the project operation cost.

We can design customized disposal solutions and equipment according to your specific situation, contact us about your application.
