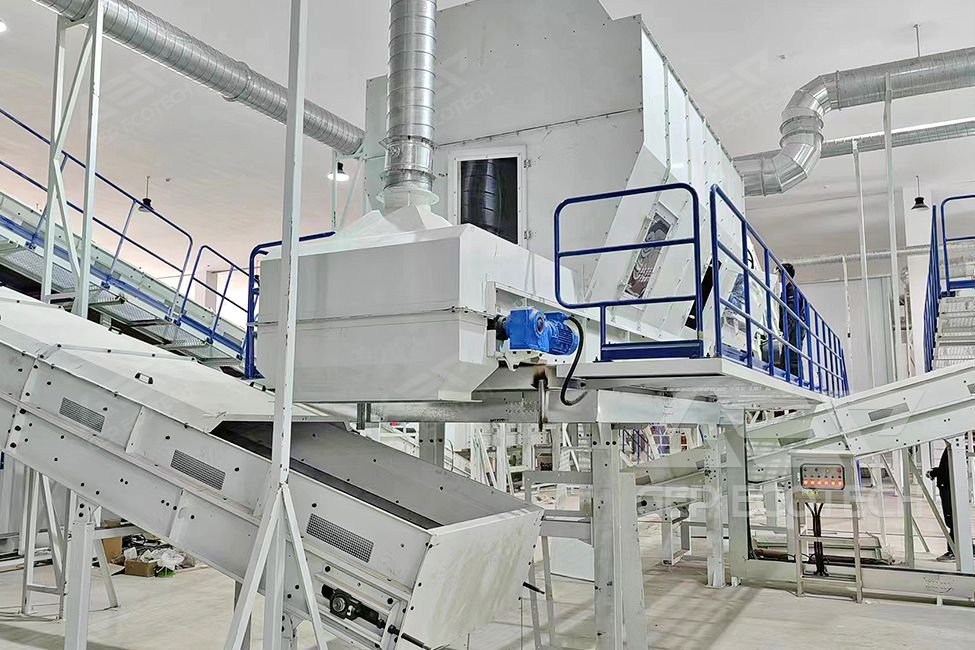

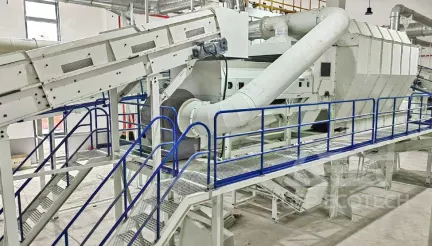

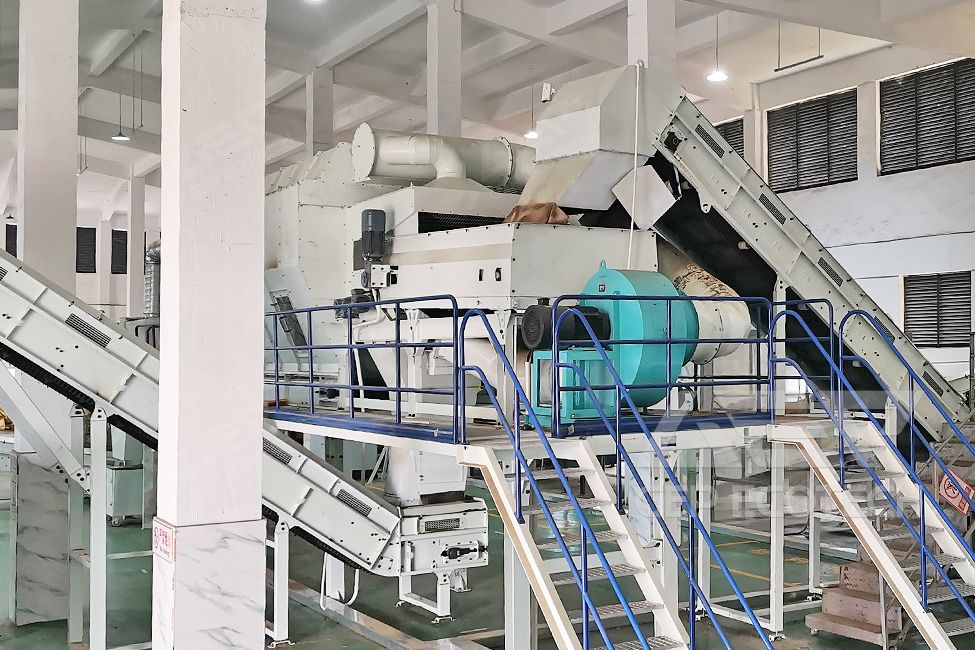

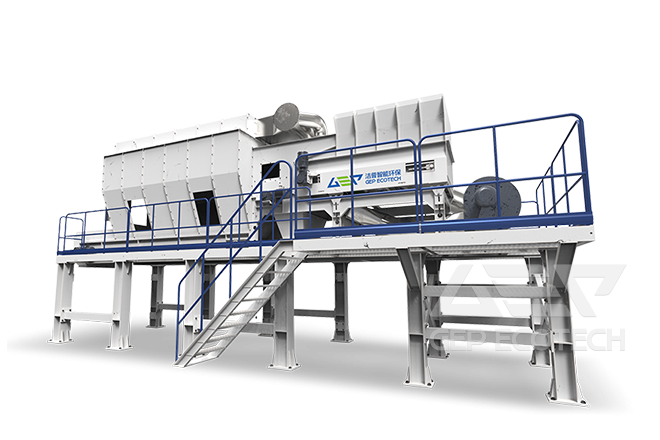

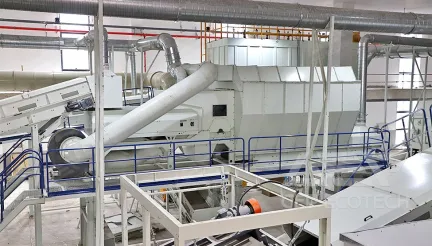

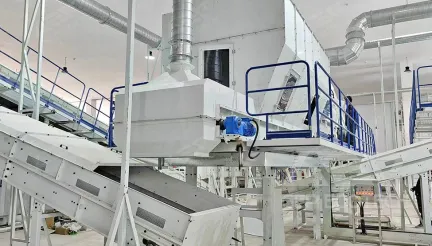

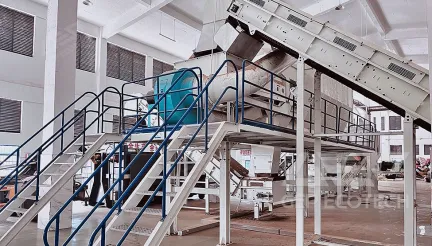

GFX series wind sifter, also known as drum density sorter, consists of centrifugal fan, separation unit of rotating drum, belt machine and settling chamber. It uses the principle that materials are light and heavy and wind resistance is different to drive the materials with the same size of wind to achieve the purpose of easy automatic classification of materials.
GFX series wind sifter is mostly suitable for pre-treatment processing of SRF/RDF fuel for domestic waste, landfill obsolete waste, industrial solid waste, paper waste, textile waste, leather waste, rag waste, etc.
Wind sorting machine according to the principle of aerodynamics, controlled airflow for sorting media, to sort materials according to the density and size, airflow can let lighter materials (such as paper, plastic bags, film, etc.) upward away or horizontal direction to a farther place, while heavy materials due to the rising airflow cannot support them and land, or due to inertia in the horizontal direction thrown to a closer distance. Thus, the wind sorting process is based on the law of settling of materials in the air, thus achieving sorting purposes.
The host is controlled by frequency converter, and the wind speed is flexible.
The separation purity is high, which is easy to be further processed in the later process.
Modular design is adopted for convenient maintenance.
Less wearing parts and long service life.
Meeting the requirements of materials with different properties and having a wide range of applications.
| Model | Power(kW) | Working Width(mm) | Capacity(m³/h) | Material Particle Size(mm) |
| GFX800 | 22-37 | 800 | 20-30 | 40-400 |
| GFX1000 | 22-45 | 1000 | 25-35 | |
| GFX1200 | 30-55 | 1200 | 35-45 | |
| GFX1400 | 37-65 | 1400 | 50-60 |
Note: Technical specifications may change without notice due to ongoing technological advancements.
China Shandong Domestic Waste Sorting Operation Center Bulky Waste Disposal Project
Capacity: 40-60 Ton/Day
Waste Transfer Station Collaborative Disposal of Bulky Waste Project in Fujian, China
Capacity: 8-10 Ton/Hour
Textile Waste Shredding and Disposal Project in Henan, China
Capacity: 2-5 Ton/Hour
Bulky Waste Shredding and Disposal Project in Henan, China
Capacity: 4-8 Ton/Hour
Bulky Waste Shredding and Disposal Project in Xizang, China
Capacity: 4-6 Ton/Hour
Industrial Solid Waste Shredding and Disposal Project in East Asia
Capacity: 15-25 Ton/Hour
