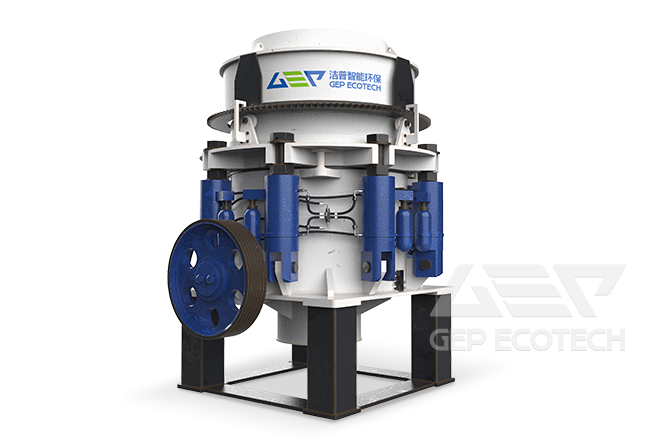

Cone Crusher

The cone crusher integrates mechanical, hydraulic, electrical, automatic and intelligent control, and adopts the principle of layer compression crushing, which is able to crush hard materials such as masonry and stone in construction and decoration waste to a small size, and the finished product is of high quality, with a cubic shape and high content of fine particles, which can meet the requirements of high-quality aggregates.

Overview

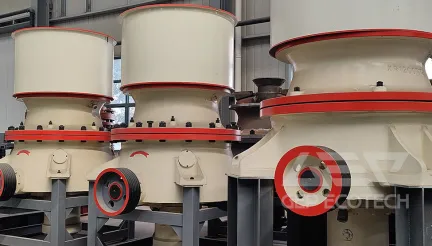

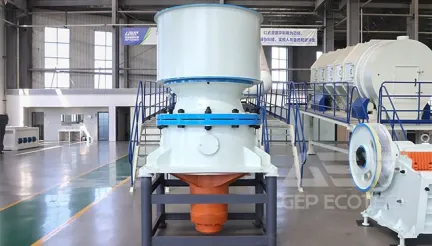

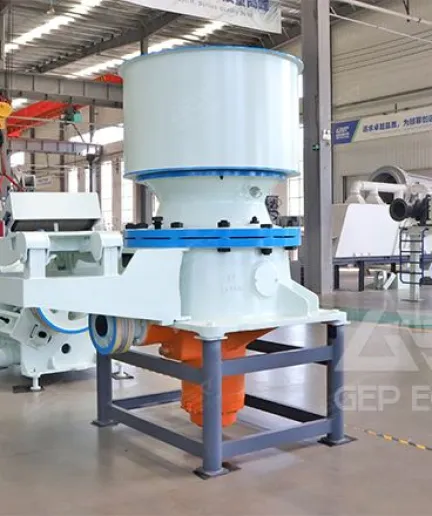

The hydraulic cone crusher is often used for stone and construction waste crushing, metal ore/non-metal ore crushing.

The motor drives the transmission shaft through the belt pulley and v-belt, and the transmission shaft drives the eccentric sleeve around the main shaft through the large and small bevel gears, and the eccentric sleeve drives the dynamic cone to make a swinging motion, so that the dynamic cone and the fixed cone are sometimes close to and sometimes far away from the concave, and the material is constantly crushed by extrusion and impact in the crushing chamber formed by the mantle and the concave, and the crushed material is discharged from the lower part.

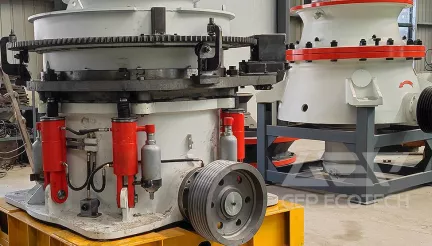

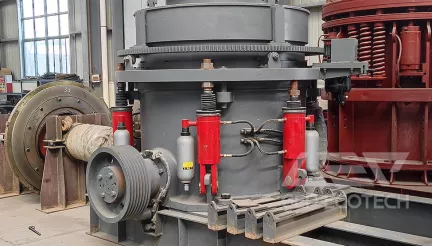

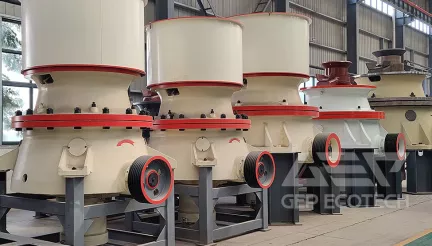

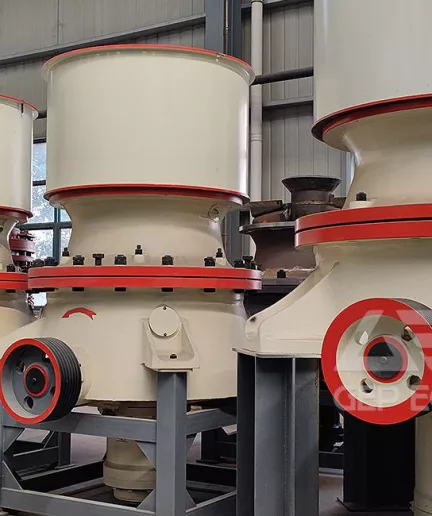

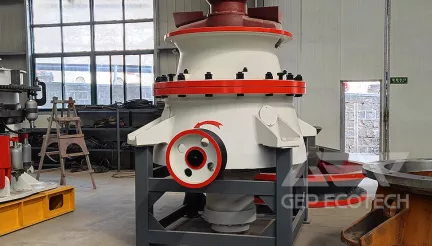

Gallery

Technical Specifications

Single-Cylinder Cone Crusher

Model	Cavity type	Max. feed size (mm)	Discharge port adjustment range (mm)	Capacity (t/h)	Power (kW)	Overall dimension (mm)
GED100	Coarse type	150	16-40	60-125	90	1700X1600X2650
	Medium type	100	14-35	50-100
	Fine type	60	10-30	40-90
GED200	Coarse type	180	16-50	120-230	160	2100X1800X3100
	Medium type	140	14-40	100-210
	Fine type	70	10-30	80-180
GED300	Coarse type	200	20-60	200-400	250	2600X2200X3800
	Medium type	140	16-45	160-350
	Fine type	90	12-35	130-280
GED400	Coarse type	230	20-65	260-500	315	2800X2400X3900
	Medium type	160	16-50	200-400
	Fine type	100	12-40	160-350
GED500	Coarse type	250	20-75	350-650	355	2800X2400X3900
	Medium type	170	16-50	280-500
	Fine type	100	12-40	200-450
GED650	Coarse type	300	20-75	400-750	450	3160X2600X4250
	Medium type	200	16-55	320-660
	Fine type	120	12-45	280-500
GED800	Coarse type	350	20-75	450-880	630	3350X2800X4450
	Medium type	260	16-55	360-750
	Fine type	160	12-45	300-690

Double-Cylinder Cone Crusher

Model	Cavity type	Max. feed size (mm)	Min. discharge opening size at closed edge (mm)	Capacity (t/h)	Power (kW)	Weight (t)
GEY160	Coarse type	150	13	120-240	160	13
GEY160	Fine type	76	6	55-180	160	13
GEY220	Coarse type	225	13	150-430	220	18
GEY220	Fine type	86	6	90-260	220	18
GEY315	Coarse type	290	13	190-610	315	26
GEY315	Fine type	100	6	108-320	315	26
GEY400	Coarse type	320	13	230-700	400	33
GEY400	Fine type	120	6	140-370	400	33
