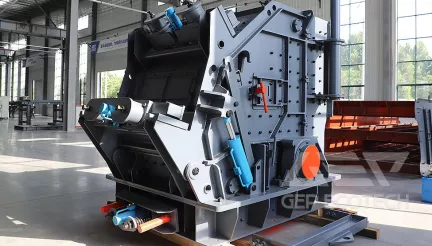

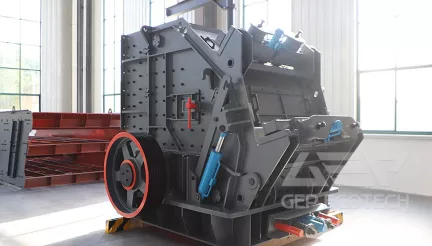

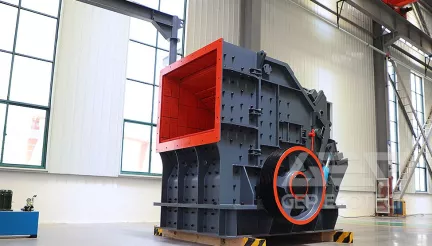

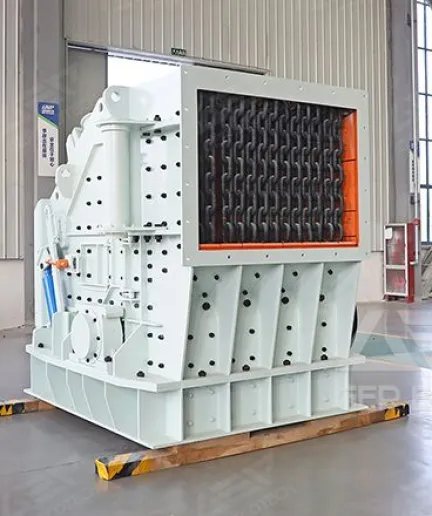

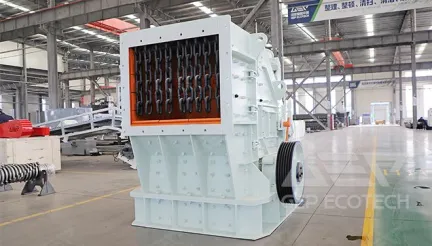

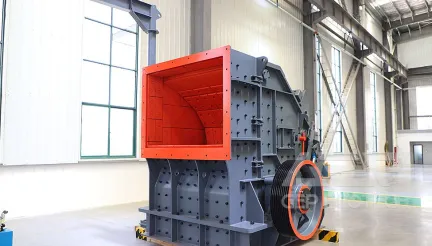

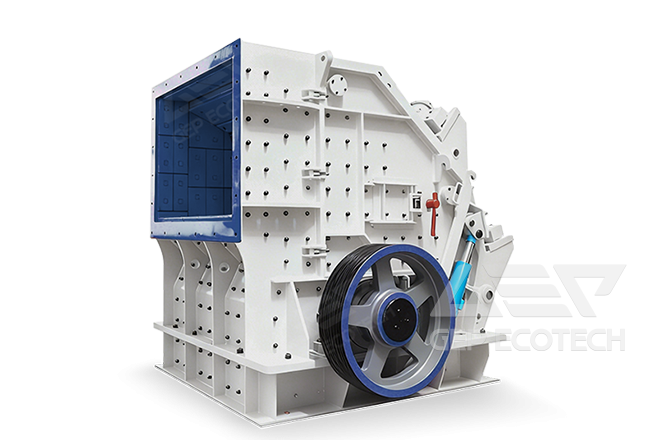

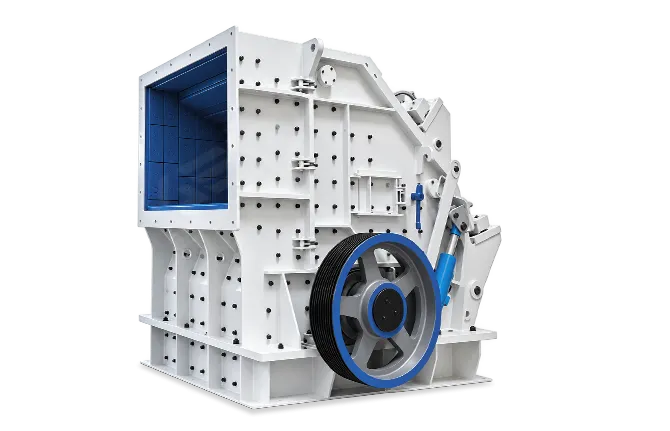

Impact Crusher

Impact Crusher

The impact crusher can crush concrete, asphalt, bricks, stones, glass and other waste materials of construction and demolition waste to a recyclable size. It is an indispensable equipment for C&D waste disposal and recycled aggregate production. The impact crusher is specially optimized for the difficulties encountered in the demolition and garbage recycling, which allows it to have excellent performance during crushing. GEP Ecotech's impact crusher is used as a quarry, construction waste disposal center and demolition site, etc.

Overview

The impact crusher can crush concrete, asphalt, bricks, stones, glass and other waste materials of construction and demolition waste to a recyclable size. It is an indispensable equipment for construction and demolition waste disposal and recycled aggregate production. The impact crusher is specially optimized for the difficulties encountered in the demolition and garbage recycling, which allows it to have excellent performance during crushing. GEP Ecotech's impact crusher is used as a quarry, construction waste disposal center and demolition site, etc.

The impact crusher uses horizontal and high-speed moving rotors to crush materials, which can help the producer to obtain a fine-grained and evenly distributed product. Impact crushers are widely used in the production of construction aggregates and crushing construction and demolition waste. GEP Ecotech's impact crusher uses high-strength materials, which greatly improves the life of the whole machine and vulnerable parts.

Impact crushers use impact to reduce the size of the material and are suitable for handling a variety of low to medium hardness materials, usually used as primary or secondary crushing. When the impact crusher is in operation, the motor drives the rotor to rotate at high speed and the material enters and falls onto the rotor, which strikes the material at high speed and the liner in the crushing chamber is crushed again. The material produced by the impact crusher has fine particles and is nearly cubic in shape.

Features

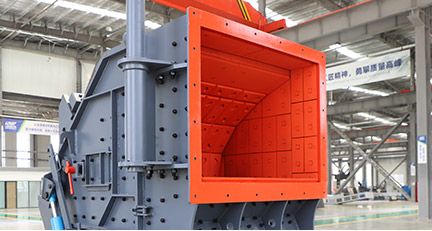

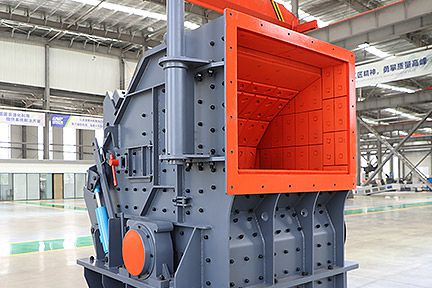

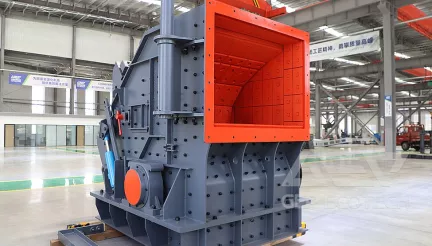

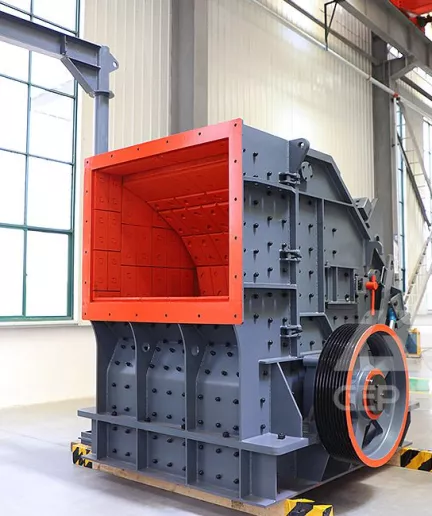

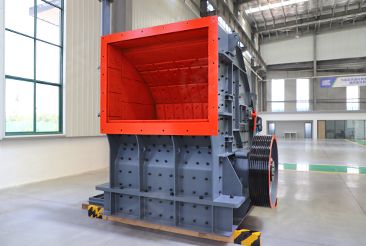

Enlarging the feed port design

The enlarged feed port design increases the size of the feed material and achieves a larger crushing ratio. It has obvious advantages when dealing with construction waste such as reinforced concrete with a large feed size.

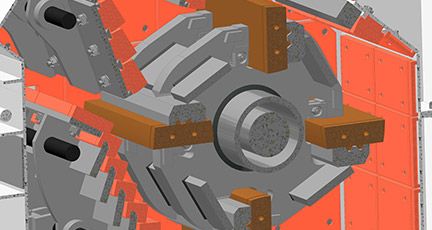

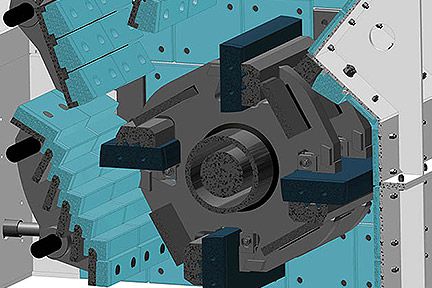

Heavy duty rotor design

The heavy-duty rotor welded by steel plate is used to obtain higher moment of inertia, greater crushing force and higher crushing efficiency. And use strict detection methods to carry out multi-directional detection on the rotor to ensure its high quality and high performance.

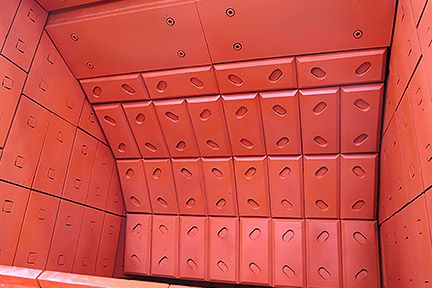

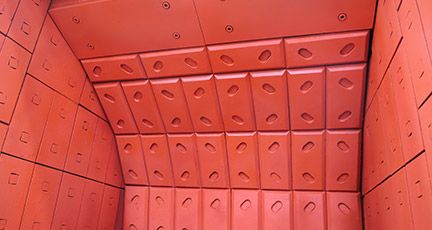

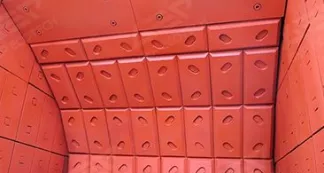

Standardized liner

The standardized design of the liner has strong interchangeability, reduces the types and inventory of customer spare parts, and is easier to replace.

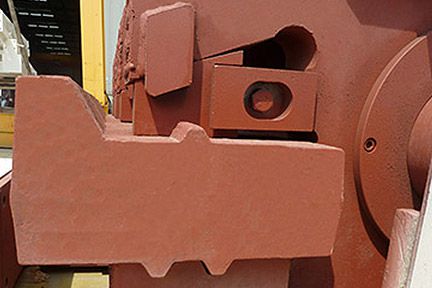

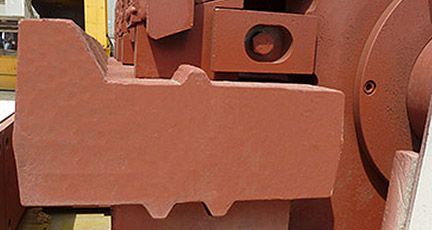

Blow bar locking mechanism

Unique blow bar locking structure, larger tightening torque, more reliable locking, more convenient installation and replacement, and also eliminates the wear problem when bolts are used to fix the blow bar.

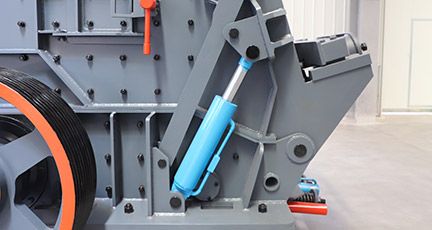

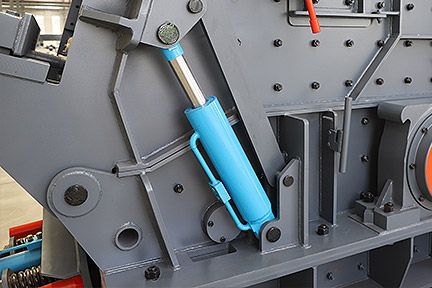

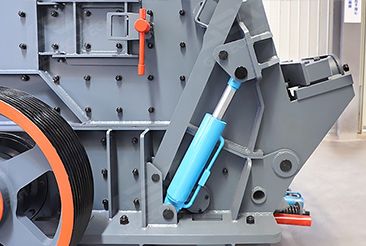

Hydraulic adjustment device

The hydraulic adjustment and opening device can not only open the frame but also be used as an adjustment device for the discharge port. It can quickly complete the replacement of hammers and other wearing parts and the adjustment of the discharge port, saving manpower and time.

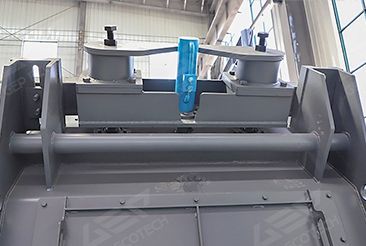

Over-iron protection device

The impact plate adopts a constant pressure spring safety device. When the non-broken objects enter the crushing cavity, the front and rear impact frames will retreat, and the non-broken objects will be discharged from the machine to resume normal work, eliminating the hidden danger of equipment jamming.
