Double-Layer Ring Die Design
Dual-side die utilization maximizes productivity and lowers consumable costs.
High Capacity, Cost Optimized, Delivering Consistent, High-Density Biomass Pellets

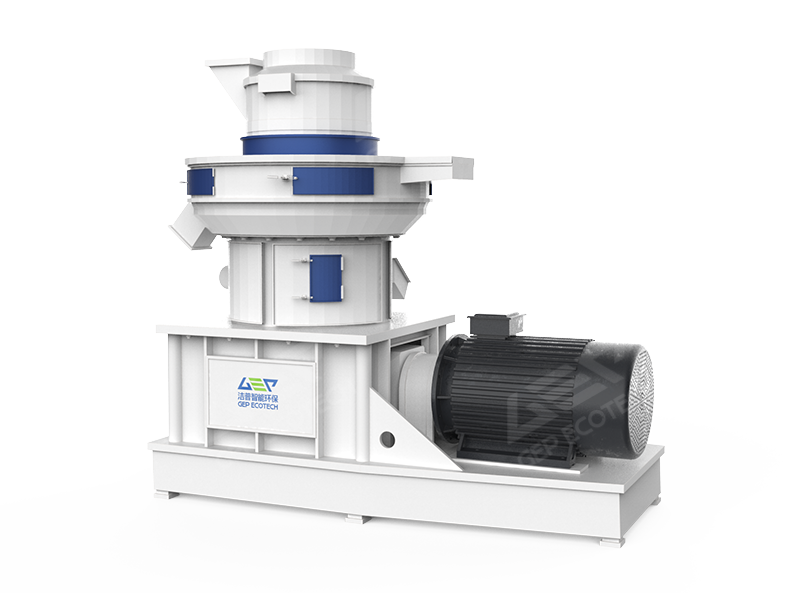

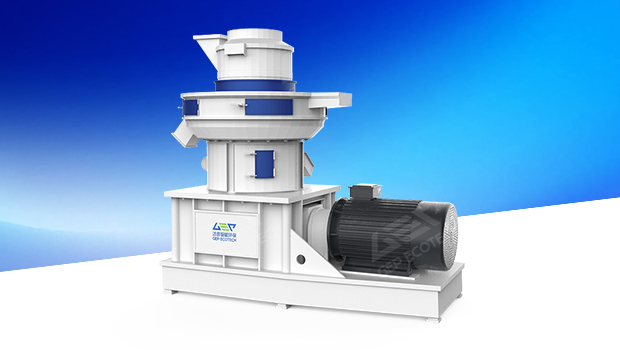

The GEP ECOTECH Biomass Pellet Mill is designed for continuous, high-load production of biomass fuel pellets from agricultural and forestry residues. It efficiently compresses materials such as rice husks, wood scraps, cotton stalks, palm biomass, alfalfa, etc. into dense, uniform pellets, increasing energy density while reducing material volume for easier storage, transportation, and combustion. Its stable feeding and high-pressure pelletizing process help maintain high calorific value and production efficiency.
Built for reliable industrial operation, the pellet mill features a robust structure, low power consumption, and a maintenance-friendly design to support continuous production with minimal downtime. Flexible model options allow the system to match different production capacities and integrate with complete pellet production lines, including pre-processing, drying, pelletizing, cooling, and packaging. It provides a practical solution for efficient biomass fuel production and sustainable energy applications. Contact us today to design a tailored biomass pellet production system.
Dual-side die utilization maximizes productivity and lowers consumable costs.
Gravity-assisted feeding improves material distribution and accommodates a wide range of biomass feedstocks.
Innovative roller arrangement increases compression efficiency and ensures smooth operation.
Natural heat dissipation reduces operating temperatures and extends component life.
Continuous lubrication with high-pressure filtration minimizes wear and eliminates maintenance downtime.
Produces dense, uniform pellets with excellent surface finish and higher market value.
| Model | Power (kW) | Roration Speed (r/min) | Module Diameter (mm) | Feeding Size (mm) | Particle Size (mm) | Capacity (t/h) |
| 380 | 30 | 980 | 380 | <10 | 6–10 | 0.3–0.4 |
| 470 | 55 | 980 | 470 | <10 | 6–10 | 0.7–1.2 |
| 560 | 90 | 1450 | 560 | <10 | 6–10 | 1.2–1.5 |
| 760 | 160 | 1450 | 760 | <10 | 6–10 | 1.5–2.5 |
| 850 | 220 | 1450 | 850 | <10 | 6–10 | 2.5–3.5 |
Note: Specifications shown are for reference. Final parameters are subject to design confirmation.
20 Tons/Hour
Biomass, Sugarcane Waste
As Fuel for Steel Plant
Send your inquiry for further information.
