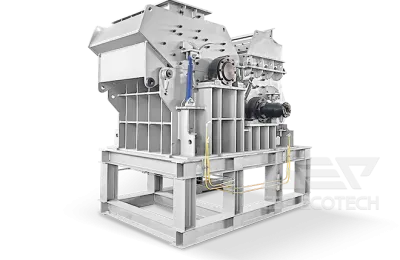

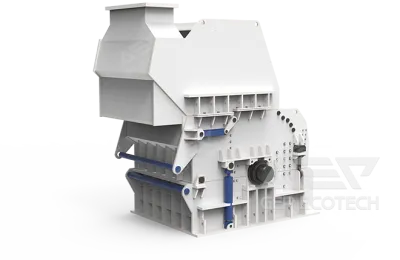

Heavy Duty Hammer Crusher
Capacity: 5–10 TPH
Scrap metal waste refers to discarded metal fragments and offcuts from metallurgical and metal-processing industries, metal packaging from municipal waste, and end-of-life vehicles. As a valuable secondary resource, scrap metal is mainly recycled through remelting to produce regenerated metals. Part of the recovered material can also be directly reused in manufacturing machinery, components, tools, and civil products, helping reduce raw material consumption and energy use while supporting a circular economy.
Aluminum Bales
Before Shredding
After Shredding
UBC
Before Shredding

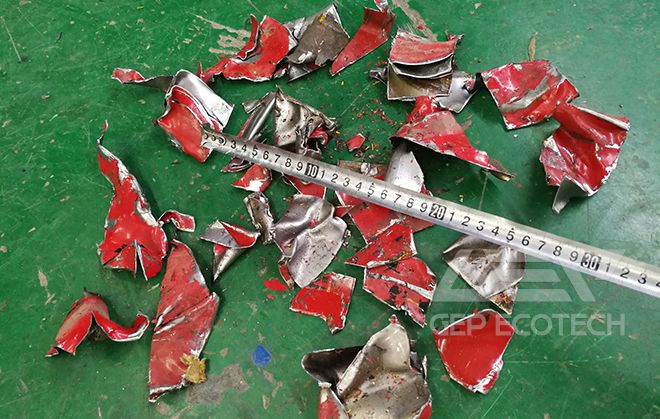

After Shredding
Fighter Wearing Parts
Before Shredding
After Shredding

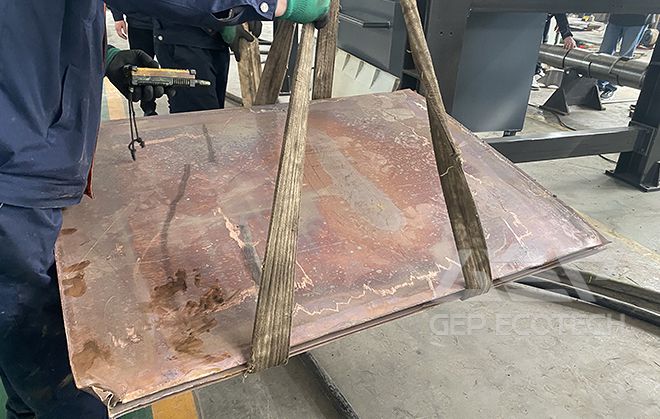

Copper Plate
Before Shredding

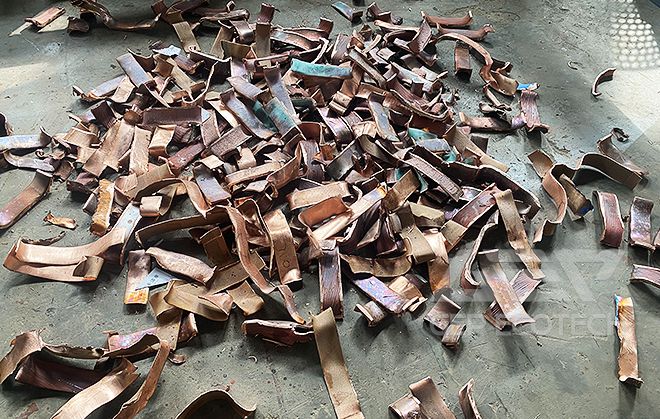

After Shredding
Aluminum Blocks
Before Shredding
After Shredding
Metal Buckets
Before Shredding
After Shredding
Metal Castings
Before Shredding
After Shredding

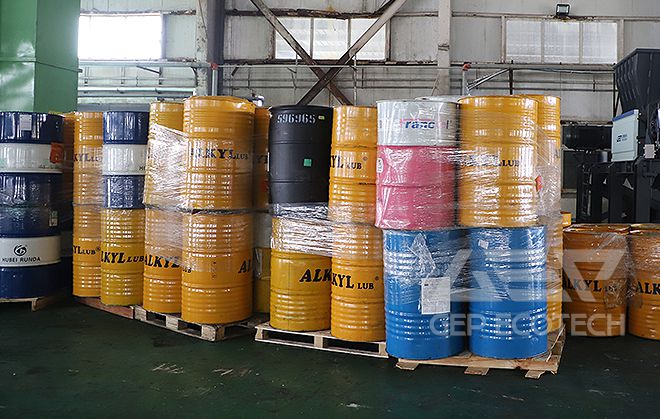

Drum (container)
Before Shredding
After Shredding

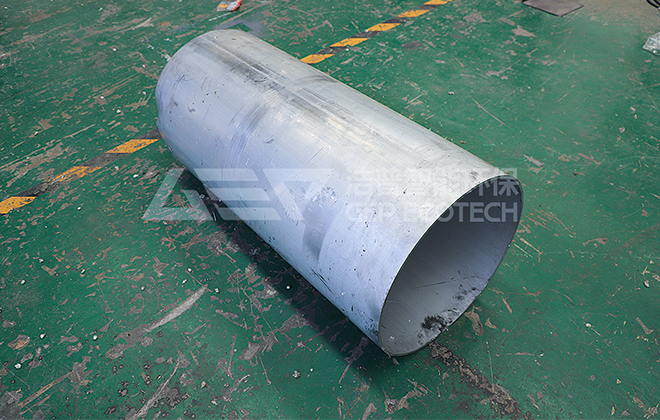

Aluminum Tube
Before Shredding

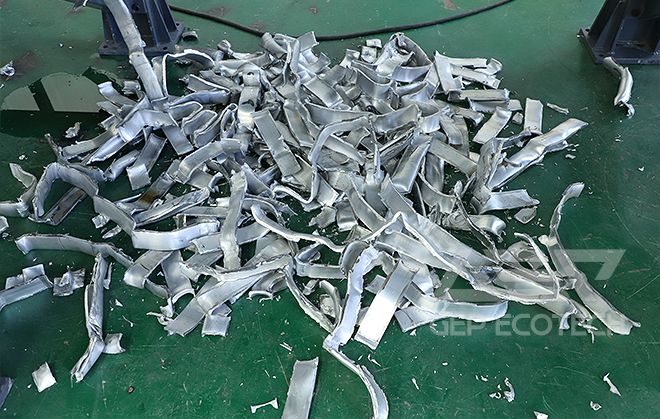

After Shredding
Mixed scrap metal is conveyed by an apron (chain) conveyor into a dual-shaft shredder, where the material is reduced in size through shearing, squeezing, and tearing actions. The shredded output falls onto a discharge belt conveyor and passes through magnetic separators to separate ferrous metals, non-ferrous metals, and non-metallic materials, each discharged by dedicated conveyors. The non-ferrous and non-metal fractions are subjected to secondary magnetic separation to recover residual free iron, improving ferrous recovery efficiency. An eddy current separator is then applied to extract non-ferrous metals, further enhancing overall recycling value.
Chain Plate Conveyor
Double Shaft Shredder
Magnetic Separator
Belt Conveyor
Eddy Current Separator
Note: This outlined process represents a general configuration, which is customizable to meet specific feedstock and final product requirements.
Capacity: 5–10 TPH
Capacity: 0.2–50 TPH
Capacity: 10–60 TPH
Capacity: 3–40 TPH
Capacity: 1–20 TPH
Capacity: 45–200 m³/h
Capacity: 6-40 m³/h
Magnetic Field Strength: 60–70 mT
Your material is not included?
Capacity: 8 Tons/Hour
Capacity: 1–3 Tons/Hour
Capacity: 3–5 Tons/Hour
Capacity: 55 PCS/Hour
Send your inquiry for further information.
