Double shaft shredder
Double shaft shredder is the core machine, to adapt to complex working conditions, as well as different specifications of materials.
Flexible Configuration, Cost-Effective, Tested and Trusted by Tire Recycling Industry

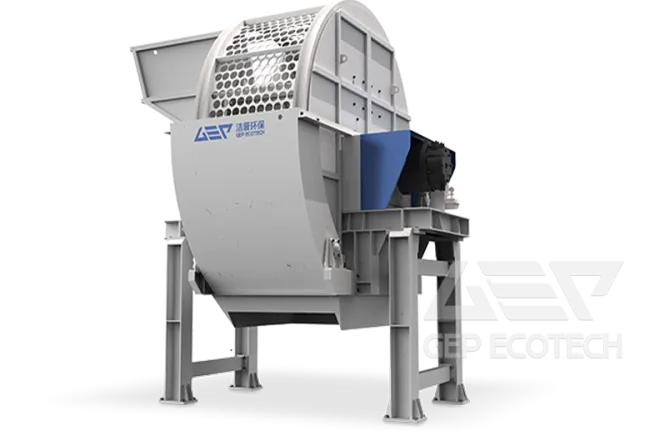

The GDT Series Double Shaft Tire Shredder is built on our proven double-shaft shredding platform and integrates a trommel screen directly into the machine. Designed for waste tire recycling, volume reduction and TDF/rubber chip production, its low-speed, high-torque drive and interlocking high-alloy cutters reliably process whole tires, truck tires and tough rubber waste. The integrated screening system improves return-material shredding and discharge efficiency, delivering the required output size in one pass.
That compact, integrated design simplifies line configuration and lowers initial investment. High-precision machining ensures stable operation, while high-alloy steel cutters can be rebuilt by built-up welding for repeated use. An intelligent control system reduces labor demand and operating losses, and customized configurations are available for different output requirements. Whether for primary shredding or a coordinated tire recycling line, the GDT Series offers durable, efficient and cost-effective performance.
Double shaft shredder is the core machine, to adapt to complex working conditions, as well as different specifications of materials.

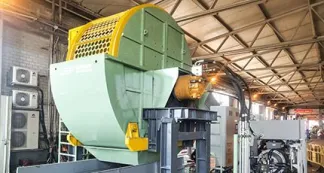

Shredder and trommel screen combined in one structural design, save space and cost.
High quality material for integral cutter, repairable, high wear resistance and high strength compatible, long life.
Independent removable fixed cutter, can be replaced quickly, save time and effort, reduce downtime.
S-shaped cutter arrangement, good material gripping effect; interchangeable cutters, easy to maintain and replace.

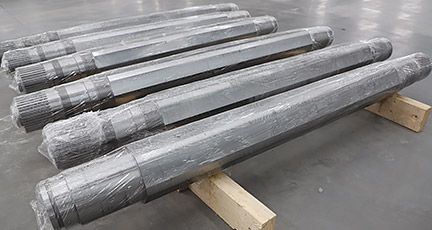

High-strength shaft refined by multi-processing, with strong fatigue and impact resistance, which can serve a very long life.

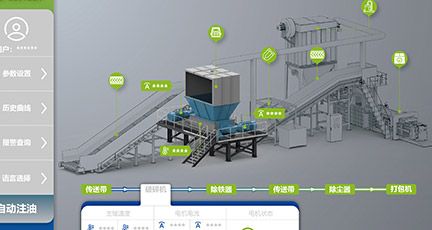

Intelligent centralized control system with advanced human-machine interface, more time saving, effort saving and mind saving for on-site operation.
| Model | Capacity (t/h) | Output size (mm) | Dimension (mm) |
| GDT6 | 1–3 | 50–60 | 4100×3200×3060 |
| GDT8 | 2–6 | 4300×3200×3160 | |
| GDT9 | 4–8 | 5400×3200×3260 | |
| GDT10 | 5–12 | 5500×2780×3457 | |
| GDT12 | 8–15 | 6000×3260×3656 | |
| GDT13 | 10–20 | 6350×3490×4025 | |
| GDT15 | 12–30 | 6900×3700×4500 |
Note: Specifications shown are for reference. Final parameters are subject to design confirmation.
2-3 Ton/Hour
Waste Tire
Alternative Fuels for Power Plants
Send your inquiry for further information.
