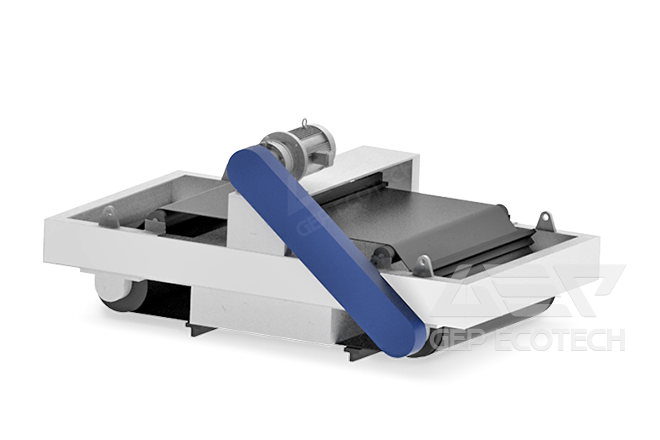

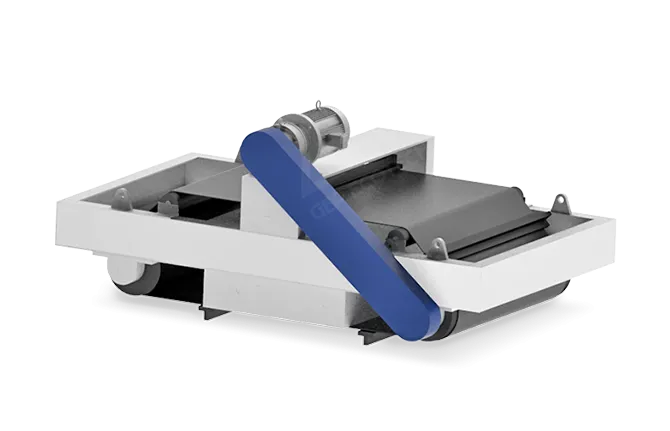

Magnetic Separator

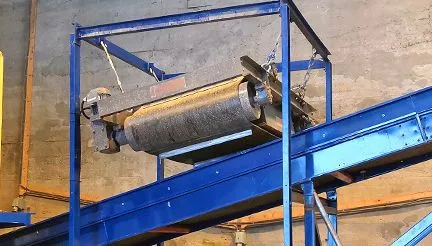

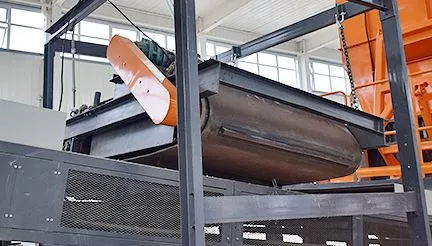

RCYD magnetic separator is a device that uses a strong magnetic field to adsorb and separate ferromagnetic materials mixed in the material. It can be used in conjunction with various types of belt conveyors, vibration conveyors, or chutes, and is generally installed at the head and middle of belt conveyors. The magnetic separator has a simple structure, strong magnetic field, high suction force, and is easy to maintain. Even in extremely harsh environments, it remains stable and reliable, with a low failure rate.

Overview

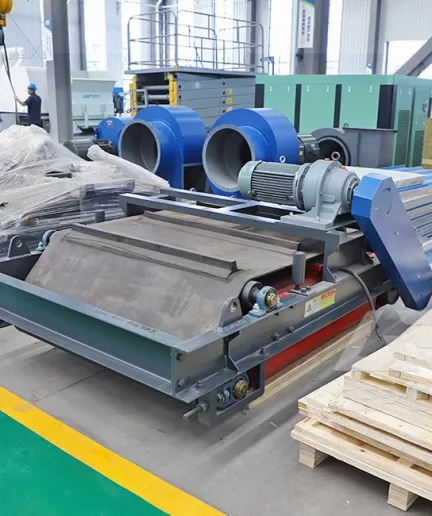

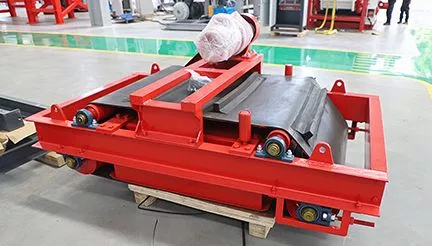

The magnetic separator is mainly composed of the reduction motor, active drum, driven drum, frame, magnets, iron unloading belt, etc. It is widely used in industries such as cement, electricity, mining, metallurgy, ceramics, chemical industry, glass, papermaking, sugar making, food, and solid waste disposal.

When the conveyed material passes under the magnetic separator, the ferromagnetic materials mixed in the material are firmly adsorbed on the iron unloading belt under its strong magnetic attraction. Due to the continuous operation of the belt, when the ferromagnetic materials adsorbed on it pass through the non-magnetic zone, they fall into the iron collection box under the action of gravity, thereby achieving the goal of continuous automatic iron removal.

Gallery

Features

 

Technical Specifications

Model	Adaptive Belt Width (mm)	Material Thickness ≤ (mm)	Rated Lifting Height ≤ (mm)	Magnetic Field Strength(mT)	Driving Power(kW)	Adapted Belt Speed ≤ (m/s)	Overall Dimensions L×W×H (mm)
RCYD-5	500	80	150	63	1.5	2.5	1650×835×940
RCYD-6	600	125	200	63	1.5		1700×935×940
RCYD-6.5	650	150	200	70	1.5		1750×985×940
RCYD-8	800	200	250		2.2		1900×1140×960
RCYD-10	1000	250	300		3.0		2140×1350×1010
RCYD-12	1200	300	350		4.0		2340×1550×1060
RCYD-14	1400	350	400		5.5		2540×1750×1060
RCYD-16	1600	400	450		7.5		3040×1550×860
