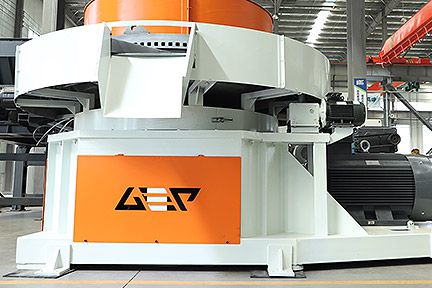

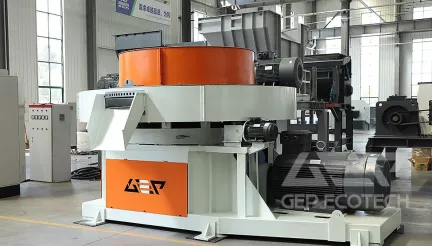

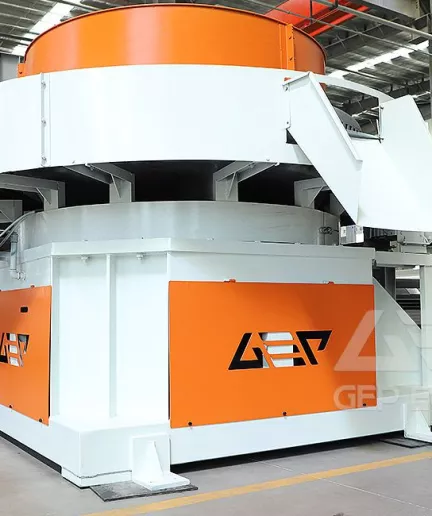

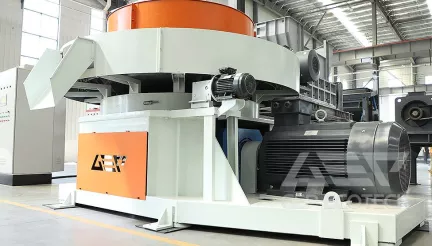

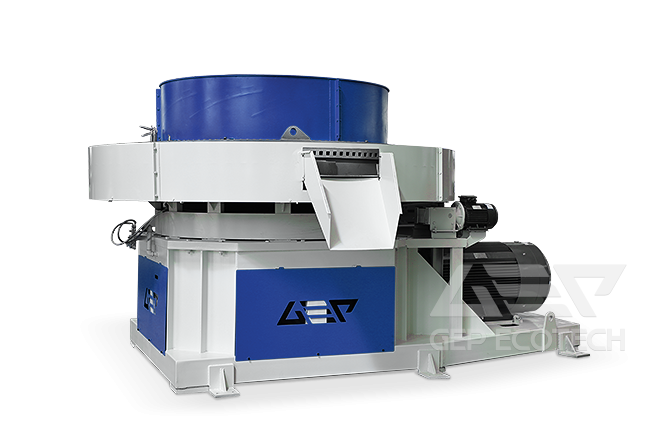

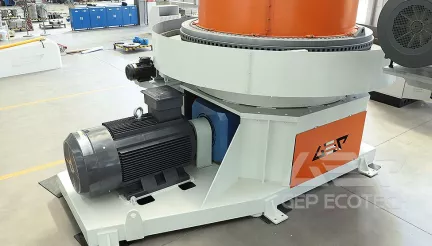

RDF Pelleting Mill

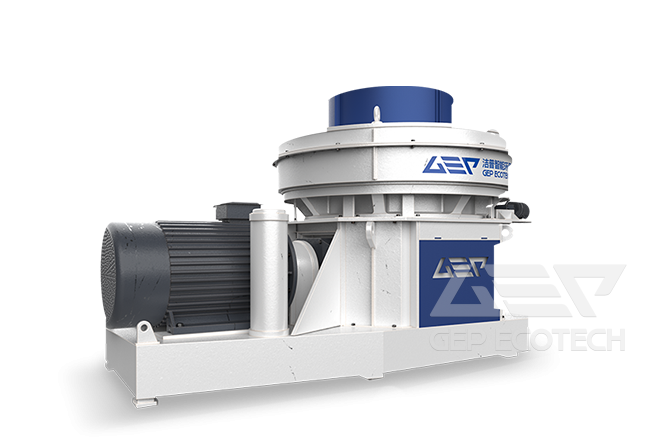

GPM series RDF pelleting mill is designed with original pressing wheel, module, anti-stuck machine, automatic oil pump, etc. It can make industrial waste, domestic waste, biomass straw, etc. into granular, high-density, high burning value RDF fuel. The equipment has the advantages of reasonable structure, high production efficiency, low energy consumption, strong adaptability, simple operation, reliable performance, easy movement, etc.

Overview

RDF pelleting mill can be used for processing industrial leftovers from shoe/clothing processing plants, papermaking scum, domestic waste, agricultural and forestry waste, etc. The processed fuel rods can be used in garbage power plants, cement plants and various industrial boilers.

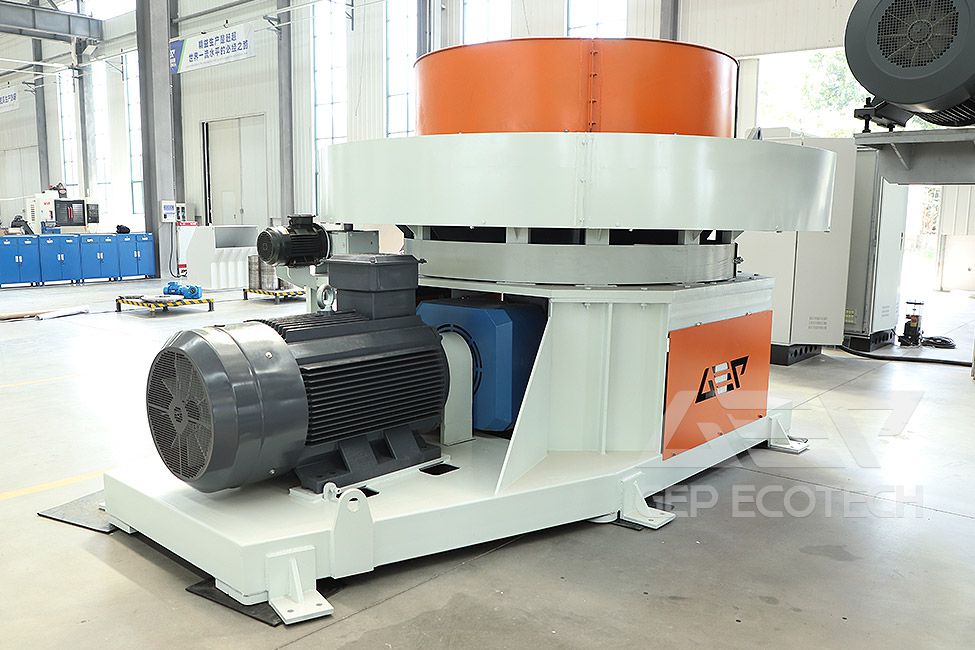

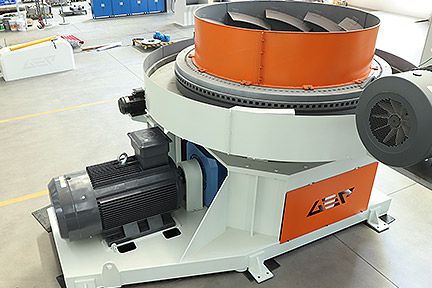

GPM series RDF pelleting mill is composed of frame, motor, feed inlet, transmission system, pressing roller, ring mold, electric heating ring, discharge outlet, etc.

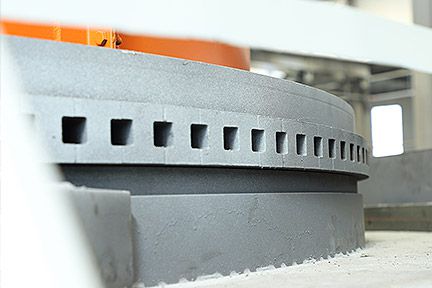

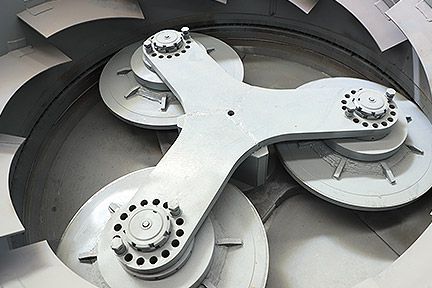

The forming molds are closely arranged in a circular layout, and a material forming channel is formed between two adjacent molds. In this way, the whole machine forms a material forming channel with radial distribution. The forming pressing wheel is driven by the main force to perform planetary movement, driving the material to feed into the mold inlet. In the process of the pressing wheel gradually approaching the cutting point of the mold, the fed materials are squeezed into the mold channel under the normal pressure of the pressing wheel, and the pressure is continuously formed in the channel. Finally, the mold is produced in the form of finished products, and the entire molding process is completed.


Features

The number of die apertures is large and the processing capacity is large; Simple structure, simple and convenient maintenance, low maintenance frequency.

Dynamic heating molding, good molding effect; Pressure forming, the lock type of the finished product is not loose.

It is convenient to adjust the radial clearance between the pressure roller and the mold, and ensure the proper clearance between the pressure roller and the mold.

Strong material adaptability, from powder to 50mm long, can be processed and formed.

Technical Specifications

ModelQuantity of Molds(pcs)Forming Fuel Specifications(mm)Processing Capacity(t/h)Main Power(kw)
GPM-525232×320.8-2.575-160
GPM-10210232×322.5-6.0160-200
GPM-13613632×323.5-8.0185-250

Note: Technical specifications may change without notice due to ongoing technological advancements.
