Angled Inlet Design
The angled partition protects filter bags/cartridges from direct dust erosion, significantly extending their service life.
Powerful Pulse, Pure Performance, Continuous Cleaning for Better Solid Waste Treatment

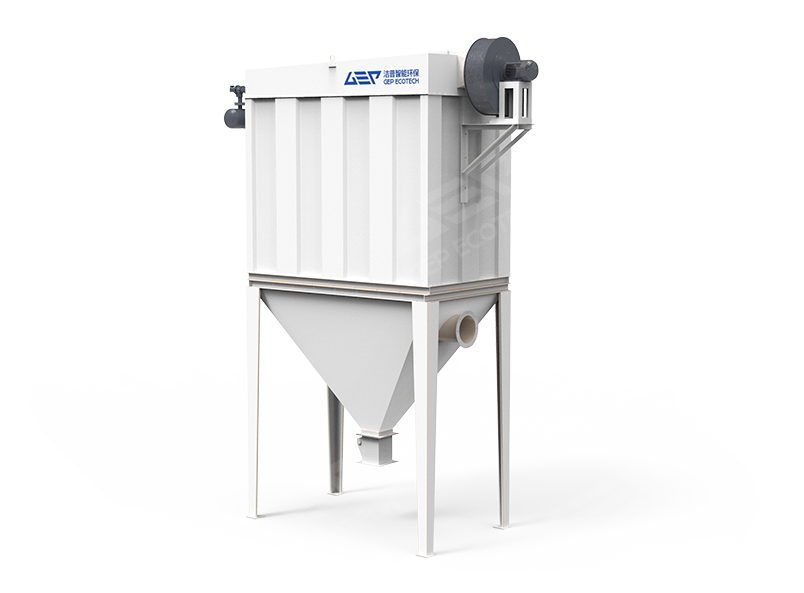

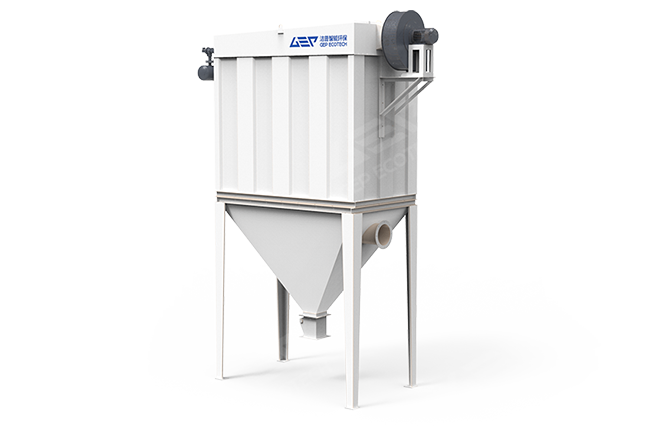

The GMC series Pulse Dust Collector delivers exceptional dust collection for dry particulate across cement, chemicals, mining, and waste processing. Utilizing advanced Pulse-Jet technology, it captures dust by filtering gas through filter bags/cartridges, then releases compressed air pulses to clean them automatically, ensuring continuous high-efficiency operation and material recovery.
Its core advantages ensure reliability and cost-effectiveness: high-temperature seals and filter options handle challenging conditions; 99.6%+ efficiency maintains outlet dust concentration below 30mg/m3, a top-access bag design and automated cleaning system significantly reduce maintenance effort and operational costs. Beyond a single unit, our filters offer flexible configurations to form a complete, coordinated dust control system for your entire production line. Engineered for seamless integration and proven in diverse applications, this is the robust solution for sustainable and productive operations. Contact us to configure your ideal dust collection system.
The angled partition protects filter bags/cartridges from direct dust erosion, significantly extending their service life.
High-temperature resistant seals and optional coated filter bags/cartridges prevent issues like condensation and material adhesion.
It keeps the pulse valves away from hot flue gas, protecting them from heat damage and ensuring reliability.
It achieves extremely low emission (<30mg/m³) and high collection rates even for sub-micron particles.
Opening the top cover allows for quick filter bag/cartridge changes, greatly simplifying maintenance and improving safety.
The system cleans filter bags/cartridges automatically based on set intervals or pressure, reducing labor and operational cost.
| Type | Model | Filtering Area (m²) | Capacity (m³/h) | Number of Filter Bags/Cartridges (pcs) |
| Single-Unit Pulse Dust Collector | GMC8 | 78 | 5500–7000 | 96 |
| GMC10 | 98 | 6500–8500 | 120 | |
| GMC15 | 155 | 11900–15600 | 190 | |
| Compartmental Pulse Dust Collector | GMC64-3 | 196 | 12000–19000 | 192 |
| GMC64-4 | 261 | 17000–26000 | 256 | |
| GMC64-5 | 326 | 22500–32300 | 320 | |
| GMC64-6 | 392 | 28200–39900 | 384 | |
| GMC64-7 | 457 | 32900–48000 | 448 | |
| GMC64-8 | 522 | 38000–55800 | 512 | |
| Pulse Cartridge Dust Collector | GLT6 | 66 | 3960–8000 | 6 |
| GLT10 | 108 | 6480–12960 | 9 | |
| GLT15 | 156 | 9360–16848 | 12 | |
| GLT20 | 210 | 12600–22680 | 15 |
Note: Specifications shown are for reference. Final parameters are subject to design confirmation.
3–5 Ton/Hour

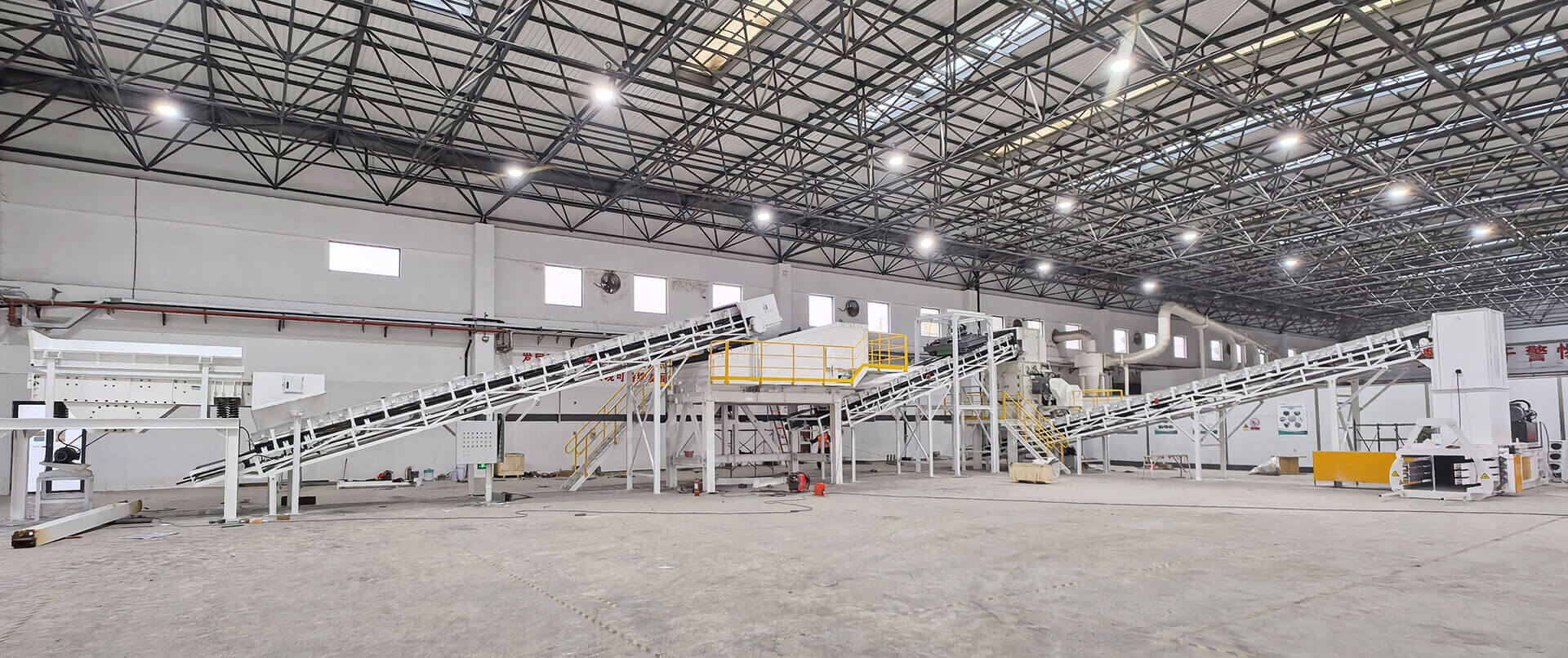

Construction Waste Combustibles
Alternative Fuel Production
