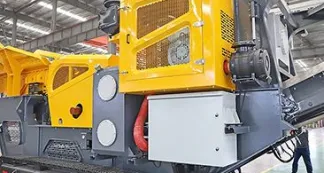

Flexible Mobility
Designed for operational flexibility, the equipment can be configured for stationary or mobile applications, making it suitable for on-site processing and dynamic working environments.
Flexible, Customizable, On-Site Crushing Solution with High Mobility

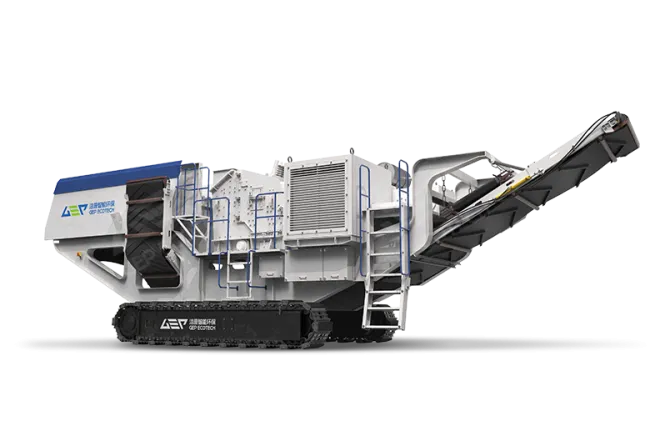

The Mobile Crushing Plant is a flexible on-site crushing solution for construction and demolition waste recycling, mining, and aggregate production. Mounted on a tire or crawler chassis, it integrates feeding, crushing, screening, conveying, and control systems into one compact unit. It can process concrete, asphalt, rocks, and ores into reusable aggregates or qualified raw materials.
Flexible configurations support primary, secondary, and fine crushing, with optional magnetic separation, dust suppression, and intelligent control. Powered by reliable diesel engines and built on a heavy-duty chassis, it delivers stable performance and durability in demanding environments. On-site processing reduces transportation and infrastructure costs while improving project efficiency. By converting waste and raw materials into valuable products, the plant supports resource recovery and sustainable development. Contact GEP ECOTECH today for your customized mobile crushing solution.
Designed for operational flexibility, the equipment can be configured for stationary or mobile applications, making it suitable for on-site processing and dynamic working environments.

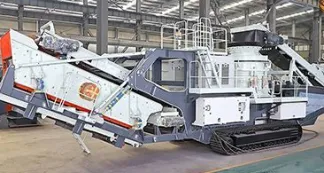

Exclusively designed based on actual working conditions and core requirements, it precisely matches production scenarios, optimizes operational efficiency, reduces adaptation costs, and enhances the overall application value of the equipment.

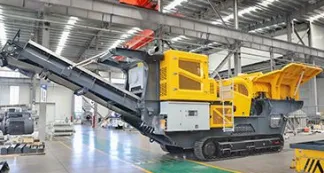

It adopts highly integrated modular design, compact structure and reasonable layout. Crawler walking module, power module, feeding module, crushing module, belt conveying module, screening module, electrical control module, etc., with mature technology and tacit matching.
Exclusively designed based on actual working conditions and core requirements, it precisely matches production scenarios, optimizes operational efficiency, reduces adaptation costs, and enhances the overall application value of the equipment.
| Type | Model | Crusher Type | Feed Opening Size (mm) | Max. Feeding Size (mm) | Discharge Port Adjustment Range(mm) | Capacity (t/h) | Transport Length (mm) | Transport Width (mm) | Transport Height (mm) | Weight (t) |
| Wheel Impact Type | GPC-I139II | Impact Type | 1100×630 | — | — | 144-240 | 10800 | 2780 | 4170 | 30 |
| GPC-I239II | Impact Type | 1100×740 | — | — | 208-320 | 11400 | 2780 | 4300 | 39.3 | |
| GPC-I255II | Impact Type | 1450×760 | — | — | 288-400 | 11490 | 2880 | 4470 | 46.3 | |
| Crawler Jaw Type | GPC-J6 | Jaw Type | 600×1060 | 500 | 60-175 | 280 | 12600 | 2760 | 3460 | 39 |
| GPC-J7 | Jaw Type | 760×1000 | 630 | 70-200 | 400 | 14600 | 2850 | 3900 | 48 | |
| GPC-J8 | Jaw Type | 850×1150 | 720 | 70-220 | 500 | 16000 | 3200 | 3800 | 65 | |
| GPC-J10 | Jaw Type | 1070×1400 | 950 | 100-250 | 800 | 16000 | 3500 | 3900 | 115 | |
| Crawler Impact Type | GPC-PH10 | Impact Type | 810×1030 | 800 | — | 250 | 13300 | 3350 | 3776 | 43 |
| GPC-PH14 | Impact Type | 1025×1360 | 1000 | — | 480 | 17000 | 3730 | 4000 | 70 |
Note: Specifications shown are for reference. Final parameters are subject to design confirmation.
80-100 Ton/Hour

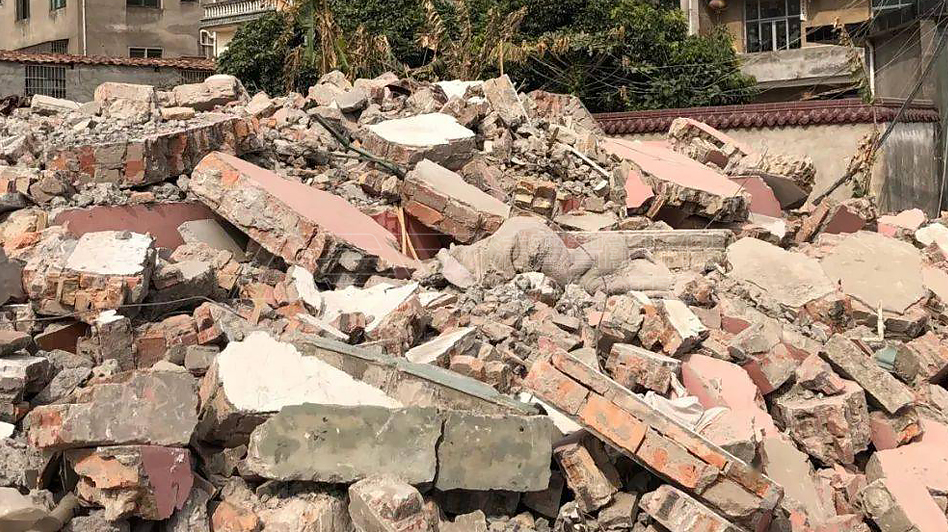

Construction Waste
Construction Waste Crushing and Recycling
