Heavy-Duty Plates
Seamless heavy-gauge plates enable smooth, high-capacity transport of large and bulky materials without jamming.
Robust Structure, Smooth Transport, Widely Trusted Across Multiple Industries

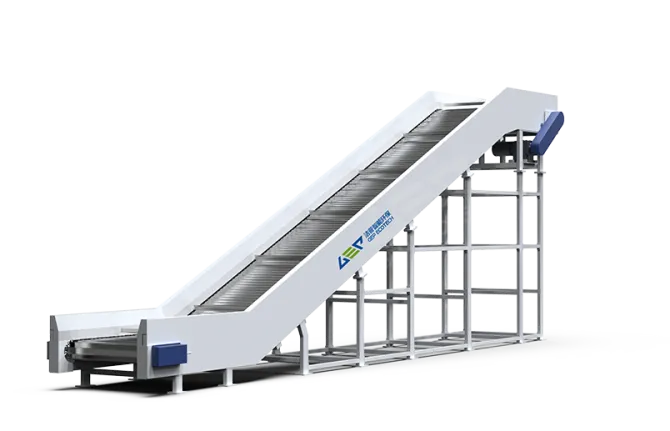

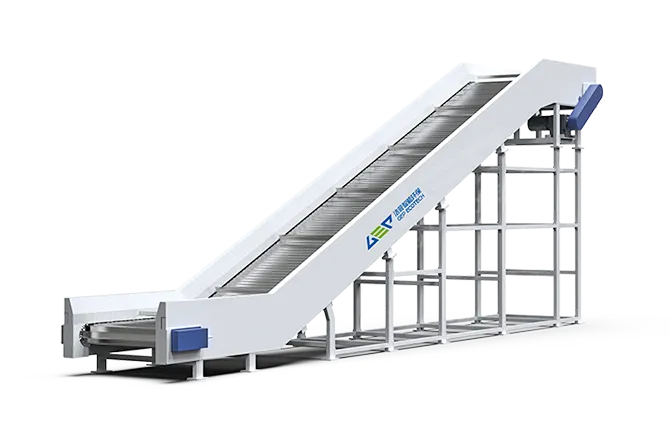

The GLC series chain plate conveyor uses a 360° circulating bending chain and sprocket for traction, with metal plates as the load carrier. It boosts efficiency and reduces labor costs across industries like food, pharmaceuticals and solid waste disposal, handling oil-resistant or corrosive materials.
Its key advantages are durability, smooth operation and low maintenance. Robust construction and seamless plates enable heavy-load, jam-free conveying, while wear-resistant chains ensure stable, quiet running. Side baffles and maintenance platforms enhance safety and accessibility. Available in multiple models, such as Flat-Top Chain Conveyor, Drag Chain Conveyor (or Scraper Chain Conveyor), Apron Plate Conveyor, Roller Chain Conveyor, Trough Conveyor, Chain Conveyor with Side Guards/Flights, it offers flexible layouts for diverse sites and materials. It seamlessly integrates into automated lines for complete workflow solutions. For a customized system that improves your productivity, contact our professional team today.
Seamless heavy-gauge plates enable smooth, high-capacity transport of large and bulky materials without jamming.
Utilizing low-strength wear-resistant chains for stable, quiet operation with minimal friction and reduced long-term wear.
Built with a rigid mechanical design that ensures reliable, safe operation and an extended service life under continuous duty.
Featuring a dedicated return rail for smoother chain movement, which cuts noise emissions by up to 50%.
Integrated side baffles prevent material spillage and rollback, securing loads and improving overall feeding efficiency.
Features an attached access ladder for easy inspection and safe, convenient routine maintenance and management.
Customizable routing adapts to material size and site constraints, supporting diverse layout and application needs.
| Model | Chain Width (mm) | Length (m) | Power (kW) | Inclination | Capacity (m³/h) |
| GLC12 | 1200 | 1–30 | 2.2–7.5 | 0–30° | 45–100 |
| GLC15 | 1500 | 3–11 | 54–135 | ||
| GLC18 | 1800 | 4–15 | 65–160 | ||
| GLC20 | 2000 | 5.5–15 | 72–180 | ||
| GLC22 | 2200 | 5.5–17.5 | 80–200 |
Note: Specifications shown are for reference. Final parameters are subject to design confirmation.
5-10 Ton/Hour

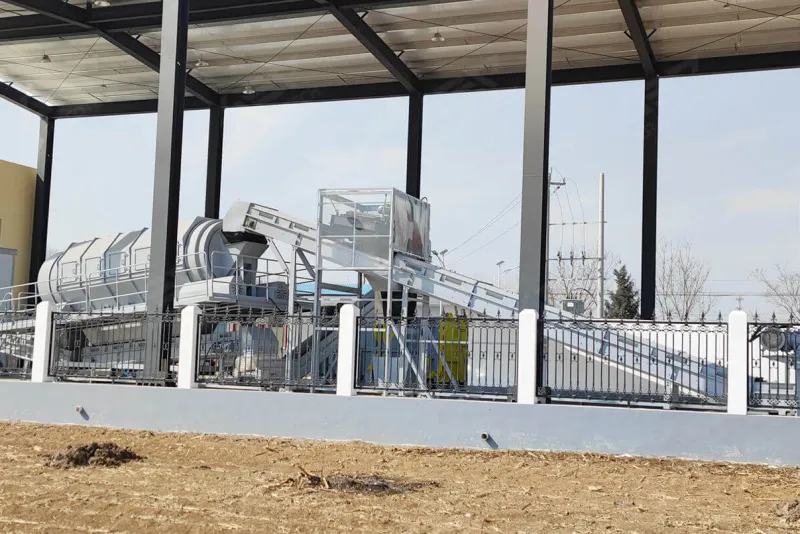

Domestic Waste
Organic Waste for Composting, Combustible Incineration for Power Generation
Send your inquiry for further information.
