High Capacity, Low Power Consumption
Delivering substantial conveying volume with minimal energy use, enabling efficient long-distance transport.
Simple Structure, Low Maintenance, an Economical and Efficient Conveying Machine

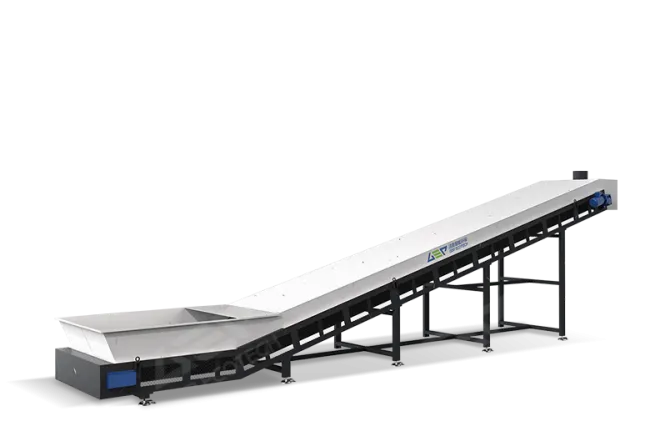

The GBC series belt conveyor is a friction-driven core equipment for continuous transport of bulk materials and finished goods. Widely used in metallurgy, coal and the environmental sector for MSW, industrial waste, construction debris and recyclables, it operates simply: a motor drives the head pulley, moving a continuous closed belt to carry materials horizontally or on an incline from feed to discharge.
It offers robust performance and cost-effectiveness, with high capacity, low power consumption, reliable stable operation, minimal downtime, and a simple structure for easy maintenance and flexible layouts. Running quietly and integrating with automated controls, it is available in troughed, sidewall/large-angle, mobile and tubular models. It works standalone or combines into a complete, synchronized production line, forming the backbone of efficient material flow. Contact us today to configure an optimal conveying solution for your operational needs.
Delivering substantial conveying volume with minimal energy use, enabling efficient long-distance transport.
Ensuring clean belt surfaces and prevents material carryback with advanced, durable scraper blades while needed.
Features stainless steel construction in critical sections to prevent interference when magnetic separators are installed.
Ensuring consistent performance for reduced downtime and easy integration into automated control systems.
Features a lightweight and robust frame that allows for quick disassembly and convenient upkeep.
Operates efficiently as a single unit or can be combined into a coordinated multi-machine conveying line.
Suitable for transporting various bulk materials and individually weighed packaged goods effectively.
| Model | Belt Width (mm) | Length (m) | Power (kW) | Inclination (°) | Capacity (m³/h) |
| GBC500 | 500 | 1–30 | 2.2–4 | 0–17 | 45–100 |
| GBC650 | 650 | 2.2–5.5 | 60–150 | ||
| GBC800 | 800 | 2.2–7.5 | 85–210 | ||
| GBC1000 | 1000 | 3–11 | 140–350 | ||
| GBC1200 | 1200 | 3–11 | 190–460 | ||
| GBC1400 | 1400 | 4–11 | 230–560 |
Note: Specifications shown are for reference. Final parameters are subject to design confirmation.
