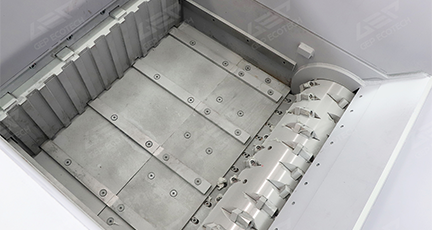

Adopting Horizontal Type Pusher
Adopting the horizontal type pusher, pushing material fast frequency, reducing no-load loss.
Controlled Sizing, Steady Operation, Prime Solution for Fine and Uniform Shreds

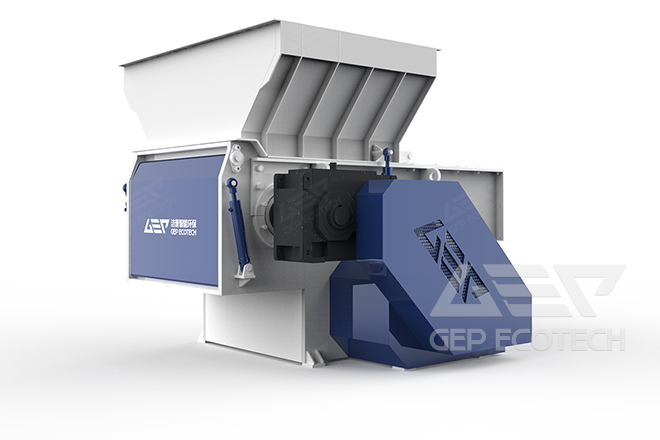

The GSS Series Single Rotor Fine Shredder is suitable for processing a wide range of materials to a small and uniform size, with a maximum capacity of around 5 tons per hour and a discharge size of 30–100 mm, depending on the model of the machine, the type of material, the size of the screen and the field of application.
The GSS fine shredder is a versatile machine suitable for recycling operations in production of valuable raw materials for boilers, power plants, cement kilns and so on. By adjusting the rotor speed and screen size, the final discharge size can be controlled. It can be used for the treatment of MSW, C&I waste, etc.
Adopting the horizontal type pusher, pushing material fast frequency, reducing no-load loss.

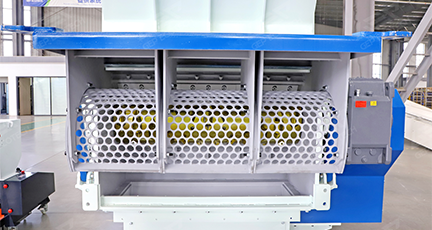

The screen and screen bracket adopt combined structure; the screen mesh is easy to replace and the cost is low.

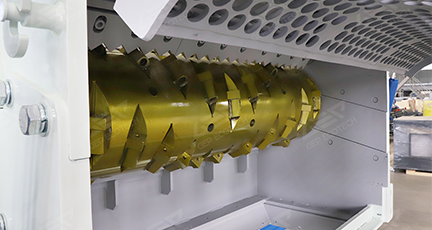

The movable cutter seats and cutter grains are bolted, easy to disassemble and install, with high maintenance efficiency.

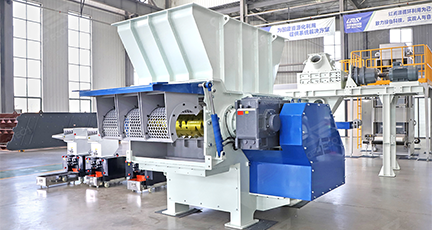

Hydraulically driven opening and closing of the access door and screen, reducing the difficulty of access and maintenance.
| Model | Capacity (t/h) | Output Size (mm) | Dimension (mm) |
| GSS8 | 0.3–1.5 | 30–100 | 1800×2800×2400 |
| GSS12 | 0.5–2.5 | 2500×2800×2400 | |
| GSS15 | 1–5 | 2880×3700×2600 | |
| GSS20 | 2–6 | 4200×3700×2600 |
Note: Specifications shown are for reference. Final parameters are subject to design confirmation.
NULL

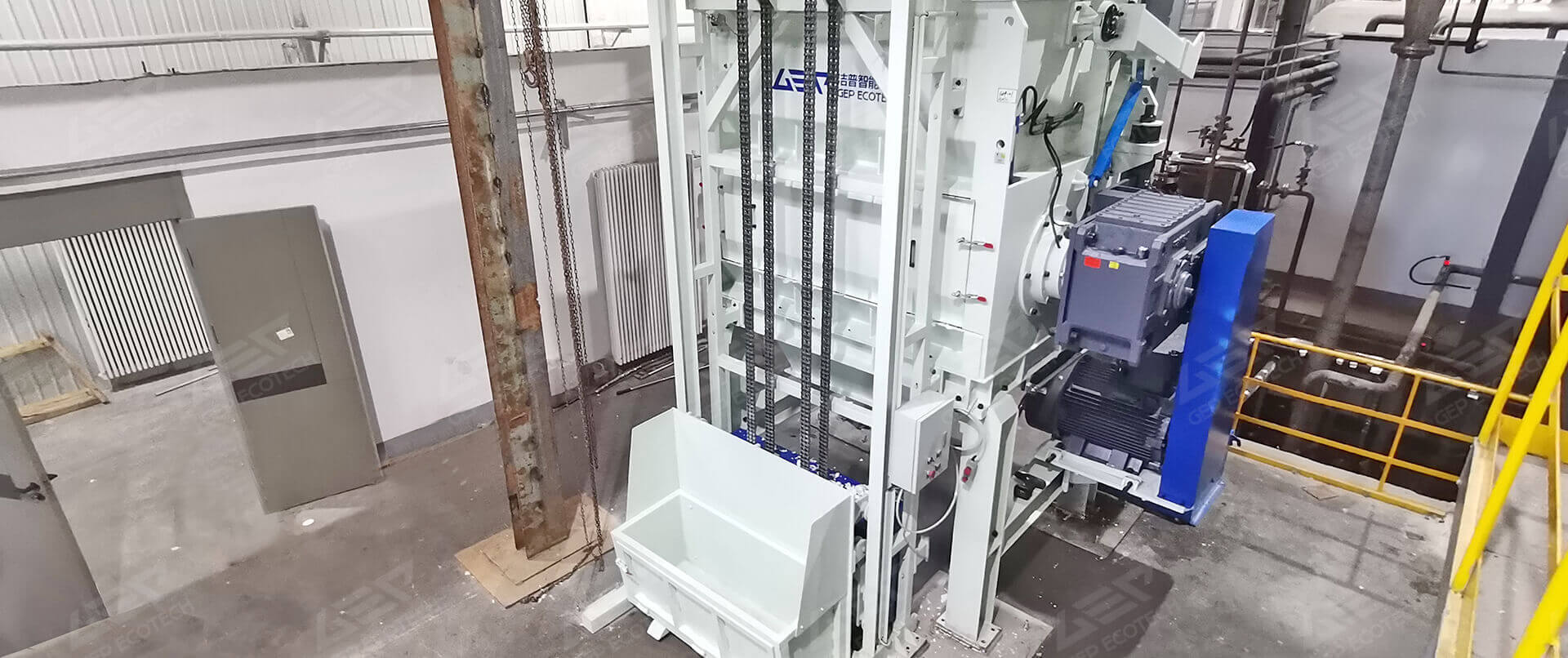

Industrial Solid Waste
