Municipal Solid Waste Disposal System

With the spread of global urbanization and the acceleration of the pace of life, urban waste is increasing and has become a global problem that threatens the living environment and health and safety of human beings, and the treatment of urban waste is urgent.

MSW contains a large amount of recyclable and reusable materials, such as high calorific value combustible materials that can be prepared into alternative fuels (RDF, SRF) to reduce the use of coal, organic materials that can be made into compost or used for digester fermentation, and high value recyclables such as plastics, glass, metals and waste paper that can be directly reused or made into raw materials.

The main common disposal methods for municipal waste are landfill, composting and incineration, but all must be shredded and refined before disposal. GEP ECOTECH offers a full range of MSW disposal systems to help improve treatment efficiency and recycling rates through pre-shredding, magnetic separation, screening and fine shredding processes to reduce the volume of MSW and sort them.

GEP ECOTECH can develop the best disposal solution according to the project requirements, effectively reducing project operating costs, using highly automated, stable, efficient, safe and reliable equipment with a low failure rate, completely reducing the volume and weight of domestic waste, saving land area and extending the life of the landfill site.

Landfill

Landfill

Waste Pit

Waste Pit

MSW Shredding Plant

MSW Shredding Plant

Municipal Solid Waste Disposal System

Raw Domestic Waste Disposal Solution

The household waste is transported to the pre-shredder for pre-shredding, the shredded material enters the trommel screen for screening, where the material >40mm is separated by the magnetic separator and the wind separator to obtain usable metal, heavy material and light material, where the light material is transported to the fine shredder for fine shredding, and finally the fuel meets the feed size. The < 40mm screened material from the trommel screen is returned to landfill, together with the heavy material from the wind separator.

Raw Domestic Waste Disposal Solution

Food Waste Disposal Solution

Food waste accounts for about 50% of municipal waste and has a complex composition, including leftovers, vegetables, leaves, peels, meat and bones, etc. GEP ECOTECH has a disposal system with a full range of food waste disposal functions - intelligent feeding + pre-sorting + intelligent shredding+ Fine Sorting + Multi-stage Screw Press, with advanced technology, high sorting and debris removal efficiency and high automation, ultimately achieving effective separation and recovery of organic matter.

Food Waste Disposal Solution

Aged Waste Disposal Solution

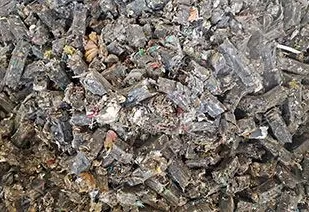

The aged waste is conveyed to the trommel screen for screening, and the screened material >40mm is conveyed to the shredder, wind separator and fine shredder for shredding, sorting and fine shredding in turn. The light combustible material RDF is compressed and transported to the incineration power plant for incineration and power generation. The metal selected by the magnetic separator can be recycled and the heavy inert material selected by the wind separator system, such as construction material, can be used as road base material and raw material for recycled building materials; the material under the screen of<40mm is landfill soil, humus, etc. and is transported back to the landfill for backfill, greening or composting.

Aged Waste Disposal Solution

Project Cases

  • Municipal Solid Waste
  • Double Shaft Shredder
  • Double Shaft Shredder
  • Monitoring System
  • Shredding Discharging

MSW and Bulky Waste Process Plant in Shanghai

This is a simple domestic waste treatment plant in minhang Zone, Shanghai, It receives solid and bulky waste generated from the surrounding area, shreds it, sorts it, and sells it to the power station as an alternative fuel, with a daily processing capacity of about 200 tons. The whole system consists of a GD10 double-shaft industrial waste shredder, chain conveyor, control and monitoring system. This plant has been in operation since the end of 2018 and is currently operating in good condition.

  • ​Food Waste Disposal Plant
  • ​Food Waste Disposal Plant
  • ​Food Waste Disposal Plant
  • ​Food Waste Disposal Plant
  • ​Food Waste Disposal Plant

Food Waste Disposal Project in Henan, China

GEP ECOTECH's food waste disposal system is easy to operate, powerful, highly automated with good material adaptability. GEP ECOTECH's core plant is designed for corrosion and wear resistance, impact resistance and reliability, resulting in high output and low investment over a long period of time, capable of shredding food waste to ≤150mm with a capacity of 15t/h.

Equipment

  • GC Pre-Shredder
    GC Pre-Shredder

    Pre-shredders are efficient waste processing machines utilized in recycling and waste processing applications.

    More»
  • GSD Double Rotor Fine Shedder
    GSD Double Rotor Fine Shedder

    High output, Quickly Reduce the Material to the Final Size.

    More»

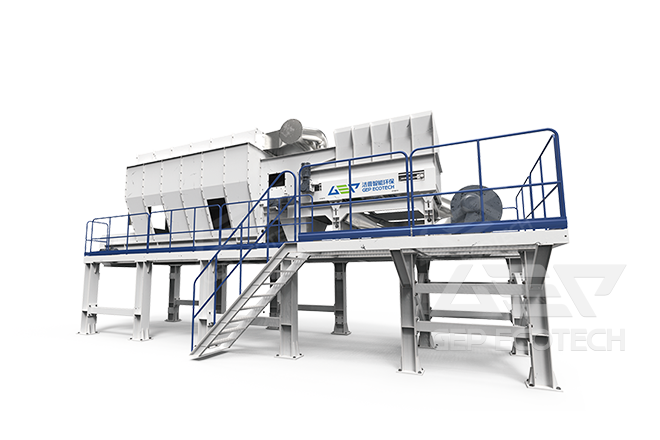

  • GFX Wind Sifter Separator
    GFX Wind Sifter Separator

    Separate light from heavy materials with the use of an air stream.

    More»
  • Rotary Drum Screen
    Rotary Drum Screen

    Drum Screen is available in different designs and suitable for numerous applications of solids-liquid separation.

    More»
  • Iron Magnetic Separator
    Iron Magnetic Separator

    High efficiency, energy saving, fast separation of metals

  • Mobile Compression Trash Can
    Mobile Compression Trash Can

    We offer a broad range of mobile and stationary waste compactors.

Shredding & Recycling for Various Solid Waste

GEP Ecotech offers size reduction equipment and recycling/disposal solutions for different solid wastes, which will help to improve resource utilization efficiency and reduce the space taken up in landfills.
