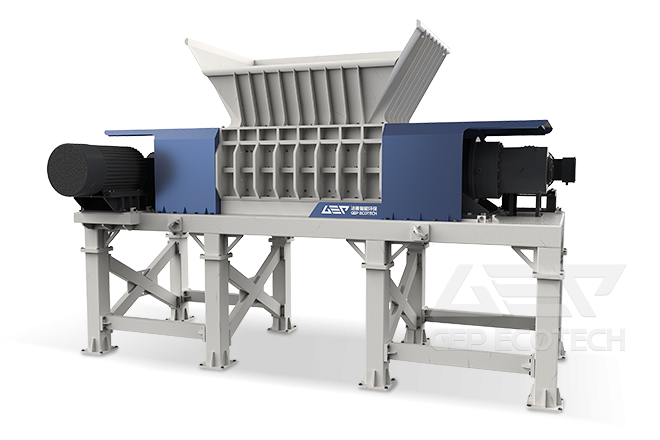

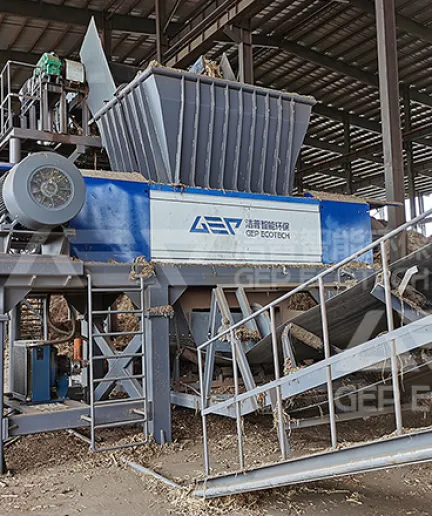

The GDB series double-shaft shredder is specially designed to handle waste from municipal green waste, rootstocks, untreated waste wood, straw or fruit shells of crops, etc. It can quickly shred biomass materials into small pieces. GEP Ecotech's double-shaft shredder has high output and reliable performance, widely used in biomass cogeneration power stations.
Biomass is a renewable organic material of plant and animal origin and is an important alternative fuel for electricity or heat generation. The high value of biomass and the low cost of disposal are receiving increasing attention, and there are now many power stations around the world dedicated to burning biomass.
GEP Ecotech offers cost effective biomass pre-shredding equipment, the GDB range of double-shaft shredders are ideal for the integrated use of biomass due to their ability to process material to a small size in a single pass, high capacity disposal, intelligent maintenance and continuous operation. the GDB double-shaft shredder blade set is optimized for the processing of lignin and cellulose and is cost effective and durable.
The biomass shredder is driven by a motor that drives two cutter shafts that rotate the cutter and sleeve at low speed. The shearing effect is achieved by the shearing of the adjacent cutter face edges on the cutter shaft, the shearing of the cutter tip against the cylindrical surface of the sleeve and the tearing by the torque and speed difference of the cutter shaft.
Unique anti-winding fixed cutter design, effectively solving the problem of wrapping material entanglement and improving shredding efficiency.

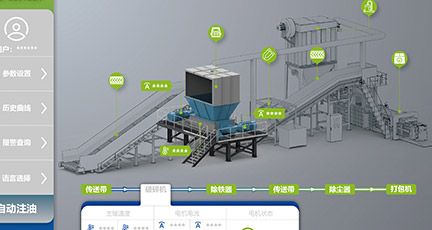

GI intelligent monitoring system, which can monitor the operation condition in real time; fault warning indication, escorting for long time continuous work.

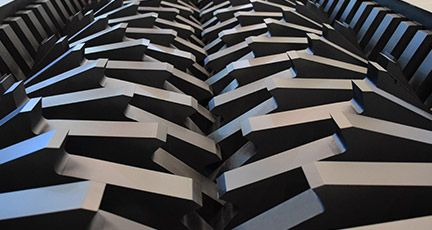

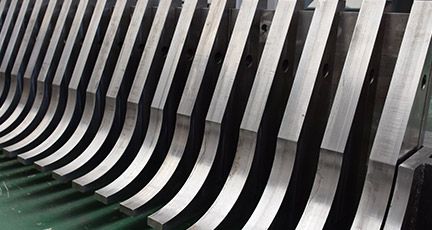

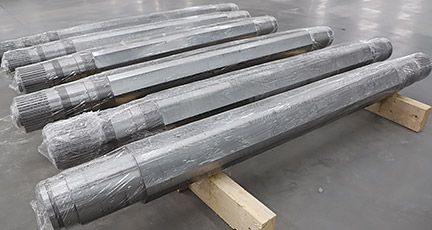

Shaft and cutter are made of high-strength alloy steel with multi-step finishing process for long service life.

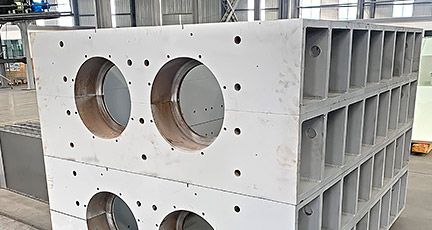

Integral patented cutter box, fine design, high quality processing, can guarantee the efficient and stable operation of the machine.
Large capacity work area design, can cope with different forms of bundles, different forms of loading, higher efficiency.

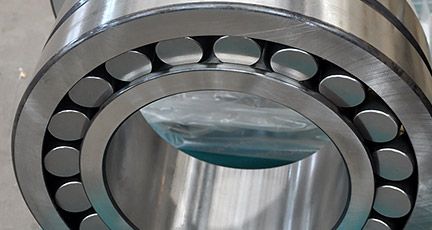

International famous brand bearings quality assurance, high load resistance, can withstand long time continuous operation.

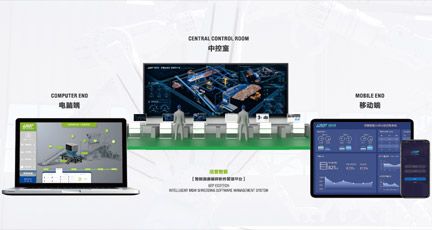

Intelligent centralized control system with advanced human-machine interface, the on-site operation is more time-saving, labor-saving and mind-saving.
| Model | Capacity (t/h) | Output size (mm) | Dimension (mm) |
| GDB115 | 10-25 | 50~200 | 6000×3300×4000 |
| GDB215 | 15-35 | 6500×3500×4300 | |
| GDB315 | 30-50 | 6900×4000×4700 | |
| GDB415 | 40-60 | 7000×4300×4800 |
Note: Technical specifications may change without notice due to ongoing technological advancements.

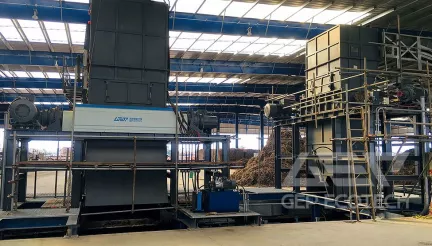

NNBP 25 MW Biomass Shredding System for Power Station in South East Asia
Capacity: 30-40 Ton/Hour

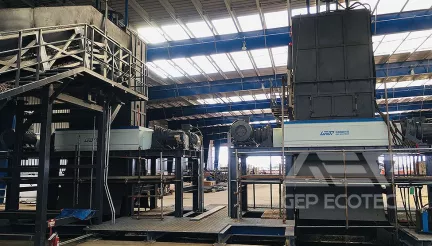

Biomass Fuel Pre-Shredding Project in Heilongjiang, China
Capacity: 50-60 Ton/Hour

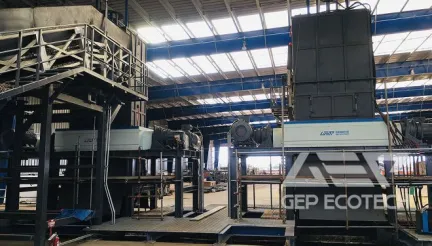

Integrated Biomass Shredding and Disposal Project in Northeast China
Capacity: 60 Ton/Hour
Biomass Straw Crushing Project in Northeast China
Capacity: 50-60 Ton/Hour
