The main load-bearing components are made of imported high-strength steel plates, which have high strength and long service life.

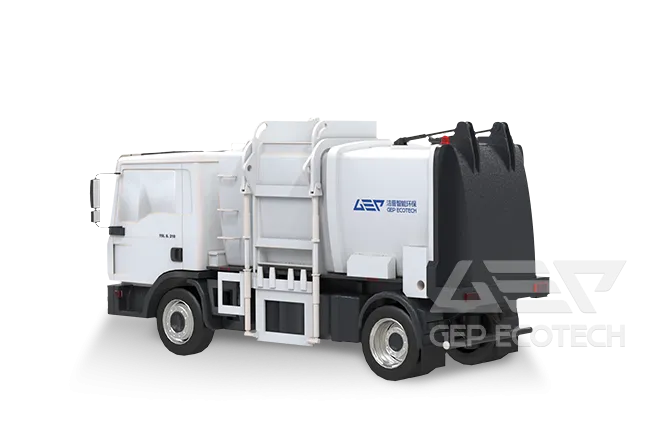

The detachable container garbage collector is suitable for the transportation and unloading of garbage containers in various situations.
The main load-bearing components are made of imported high-strength steel plates, which have high strength and long service life.
Adopting a one key linkage control method, there is no need for multiple operations, which can avoid tedious or erroneous operations.
Adopting imported PLC and electromechanical hydraulic integrated control, which is integrated, fully automated, and easy to operate.
The arm hook is equipped with a safety rod, and the large arm hook is supported by a rear iron wheel, ensuring stable and reliable performance.
The hydraulic integrated multi way valve adopts original imported products, with stable quality and high reliability.
A truck can be equipped with multiple containers, reducing the number of truck configurations, improving transportation efficiency, and reducing operating costs.
| Arm Hook Truck Model | Arm Hook Model | Loading Capacity (kg) | Adaptive Containers (m³) |
| 1 ton | CCA03 | 1000 | 2 |
| 1.5 tons | CCA1 | 1500 | 3 |
| 3 tons | CCA2 | 3000 | 5,6 |
| 5 tons | CCA5 | 8000 | 10,12 |
| 8 tons | CCA8 | 14000(12000) | 10,12 (Bulk container) 10,12 (Mobile container) |
| 17 tons | CCA010 | 21000 | 15,18 (Mobile container) 18,22 (Fixed container) |
| ＞17 tons | |||
| 25 tons | CCA25 | 30000 | 22 (Mobile container) 26-28 (Fixed container) |
Note: Specifications shown are for reference. Final parameters are subject to design confirmation.
3-5 Ton/Hour
Bulky Waste
Compression, Transportation, and Incineration
Send your inquiry for further information.
