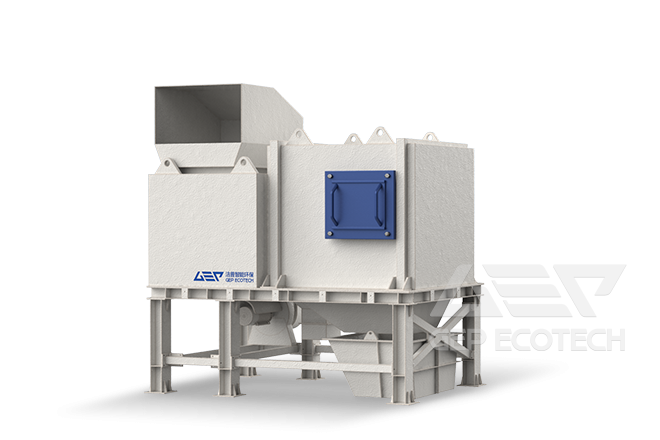

Light Material Separator

GEL light material separators are widely used in various fields of solid waste treatment and resource recycling. Their main function is to completely separate light materials (paper scraps, plastics, wood chips, cloth strips, etc.) from heavy materials in solid waste, improving the purity and quality of products. The machine has a simple structure, light weight, convenient maintenance, low operating cost, and saves electricity. The single machine has a good impurity removal rate and can be connected in series at multiple levels to ensure the maximum impurity removal effect.

Overview

The light material separator is composed of the rack, upper box, discharge bin, feeder, fan, regulating device, and outlet/return air duct, etc. It is particularly prominent in the production line of construction waste, demolition waste, and decoration waste. It can efficiently remove light materials such as wood blocks, plastics, glass, foams, and paper scraps, and improve the quality and cleanliness of finished sand and gravel aggregates.

The machine utilizes cyclone airflow classification technology to feed at a balanced rate and enter the separation chamber of airflow classification through a material distributor. Then, under the action of strong airflow, dust and light materials such as paper scraps, plastics, wood chips, are separated and directly introduced into the settling chamber to separate with finished materials. The separated dust and light materials are discharged from another outlet of the separator.

Features

 

Technical Specifications

Model	Main Power (kW)	Working Width (mm)	Capacity (m³/h)	Material Size (mm)
GEL60	11+2.2×2	1200	20-40	5-30, 30-60, 60-120
GEL80	15+2.2×2	1500	30-60
GEL100	18.5+3×2	1800	40-80
