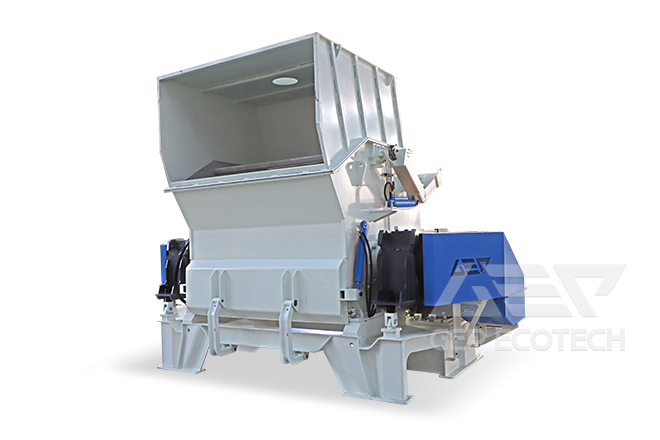

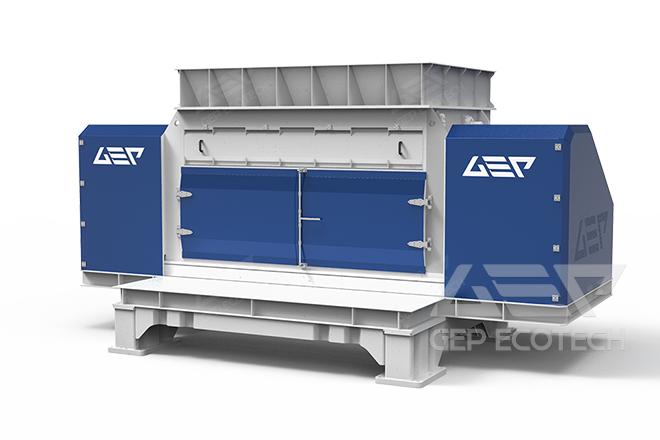

3rd Generation Fine Shredder
  • ISO certified
  • CE Certified
  • Credit Enterprise
  • R & D Enterprises

3rd Generation Fine Shredder

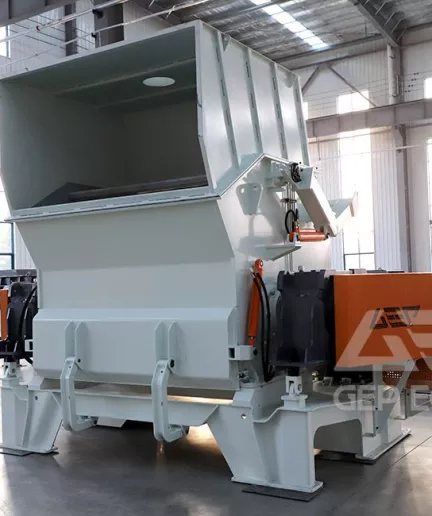

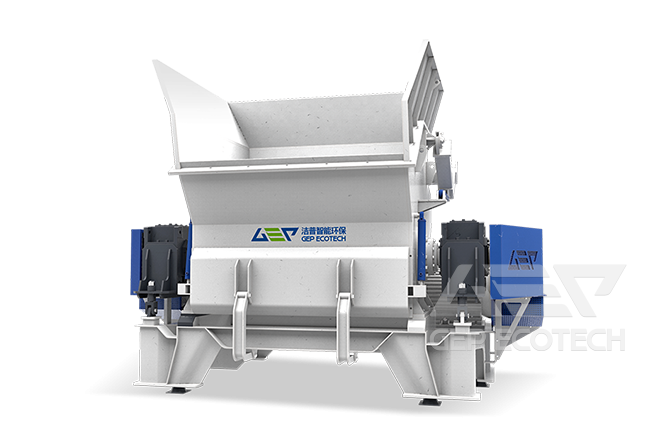

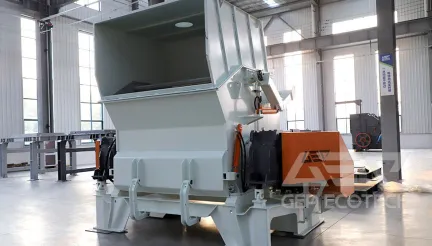

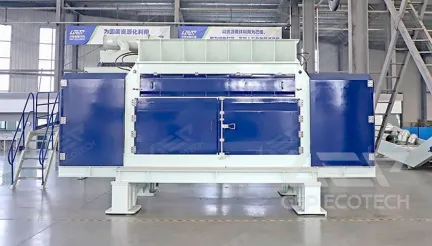

GSE-3 series European version single shaft fine shredder is the third generation enhanced product of GEP ECOTECH single shaft fine shredder series. It not only comprehensively adjusted the structure design, but also strengthened the equipment as a whole, making the equipment more widely applicable, with stronger crushing capacity, and better processing effect in high-intensity crushing operation of complex materials in large production lines.

Overview

GSE-3 series shredder is very suitable for the fine shredding of domestic waste, industrial waste, paper mill waste, waste plastics, waste glass and other solid wastes, especially for the high-intensity crushing of complex materials in large production lines.

The materials are put in through the feed inlet, and are sent to the rotating rotor with the aid of the arc access door and the pusher. Then, they are sheared by the cutters that move in a circle and the fixed toothed fixed cutters. When the volume of the cut materials is smaller than the mesh diameter, they fall out directly, and the larger materials continue to be shredded.

Features

Integrated design

The power system, crushing system, hydraulic feeding system, rapid discharging system, intelligent protection system and maintenance system are integrated to make operation more convenient and automatic processing capability and collaboration function more powerful.

high degree of automation

The new equipment has strong integration. Three upgrades have made all functions more compatible with the GI intelligent monitoring system of GEP ECOTECH. The degree of equipment automation has been further improved, and automatic maintenance, data monitoring, exception handling and other aspects are more intelligent.

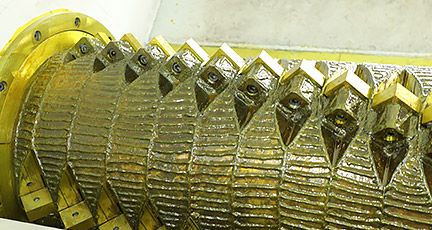

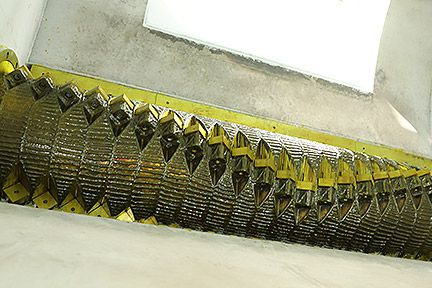

Shredder Cutters

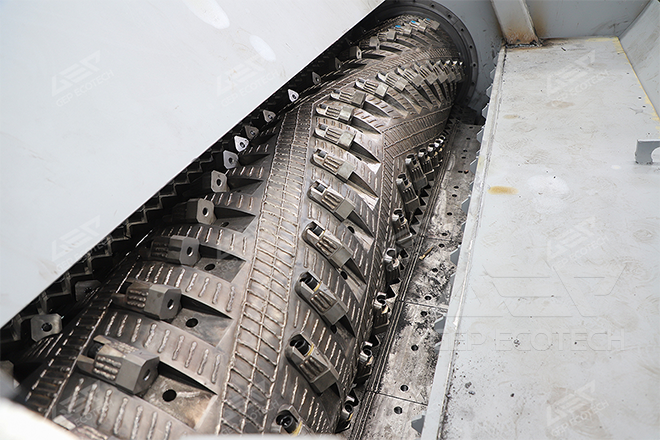

The wear-resistant layer is added to the cutter shaft, and the toughness and strength ratio of the cutter are adjusted, so that the basic functions of the equipment can play a higher crushing capacity and efficiency under the new structure. The performance is comprehensively improved, the equipment has a wider scope of application, and the service life is longer.

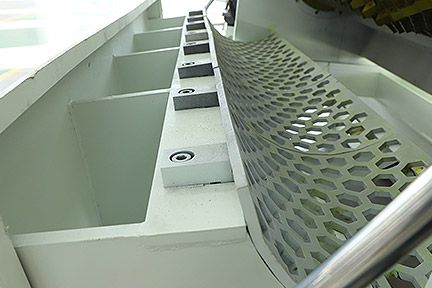

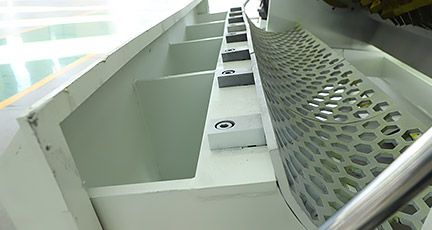

Screen

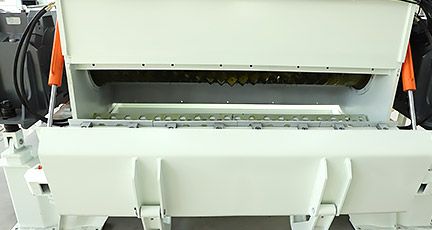

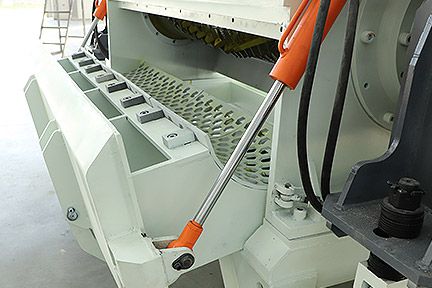

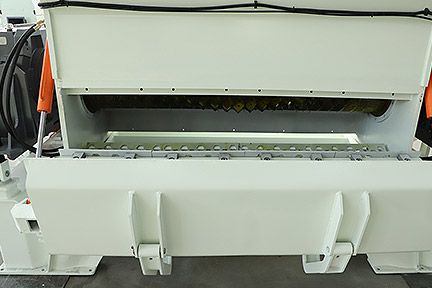

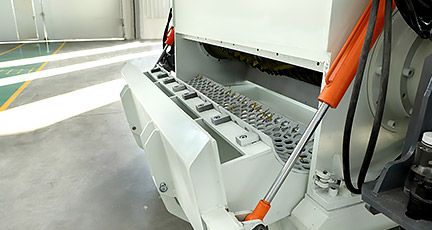

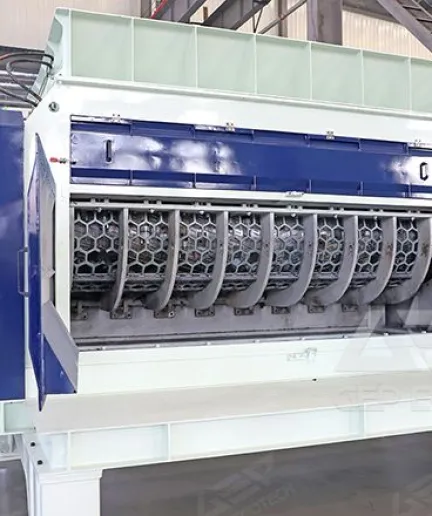

The blanking screen and the access door are integrated, which reduces some auxiliary components. When the equipment is being maintained, it can be opened hydraulically with one button. It is more convenient to overhaul and adjust the screen, which not only shortens the maintenance time, but also greatly improves the stability of the long-term operation of the equipment.

Technical Specifications

ModelCapacity (t/h)Output size (mm)Dimension (mm)
GSE312

1-5

30-1203000×2000×3000
GSE3153-103600×2000×3000
GSE3206-183800×2000×3000
GSE33010-255600×2200×3300

Note: Technical specifications may change without notice due to ongoing technological advancements.
